HW Maxi Construction Dumpers in New Zealand

Managing earthmoving and land projects is much easier with a reliable dump trailer. While gathering and moving soil is crucial, relocating it efficiently completes the job. That’s why we offer top-quality Construction Dump trailers both for sale and hire, backed by over 60 years of industry experience. Our trailers are designed for durability, efficiency, and ease of use. We take pride in producing equipment that meets the highest standards, proudly serving New Zealand and Australia with products built to last.

Benefits:

High Load Capacity: Efficiently transport large volumes of materials, reducing the number of trips needed.
Durability: Built to handle heavy loads and tough conditions, ensuring long-lasting performance.
Efficiency: Designed for quick and easy unloading, saving time on the job.
Versatility: Suitable for various construction tasks, from earthmoving to debris removal.
Customization: Options available to match specific project needs, enhancing functionality.

DOWNLOAD BROCHURE

REQUEST A QUOTE

Construction Dumper Key Features.

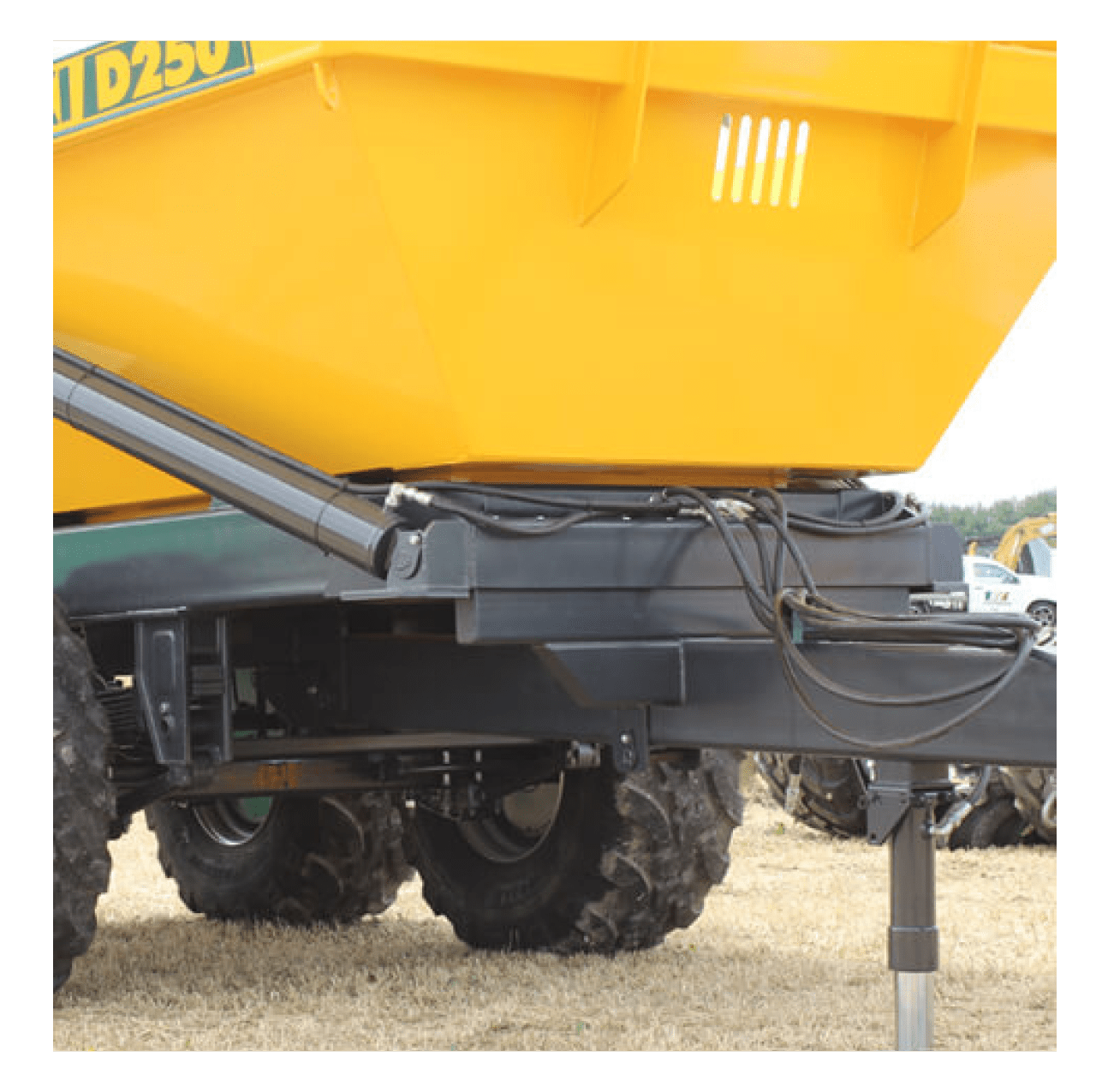

DRAWBAR

Drawbar is fully sprung and has progressive airshocks that are good for any size load. They work automatically without an air supply from the tractor. (This allows you to use it on any tractor)

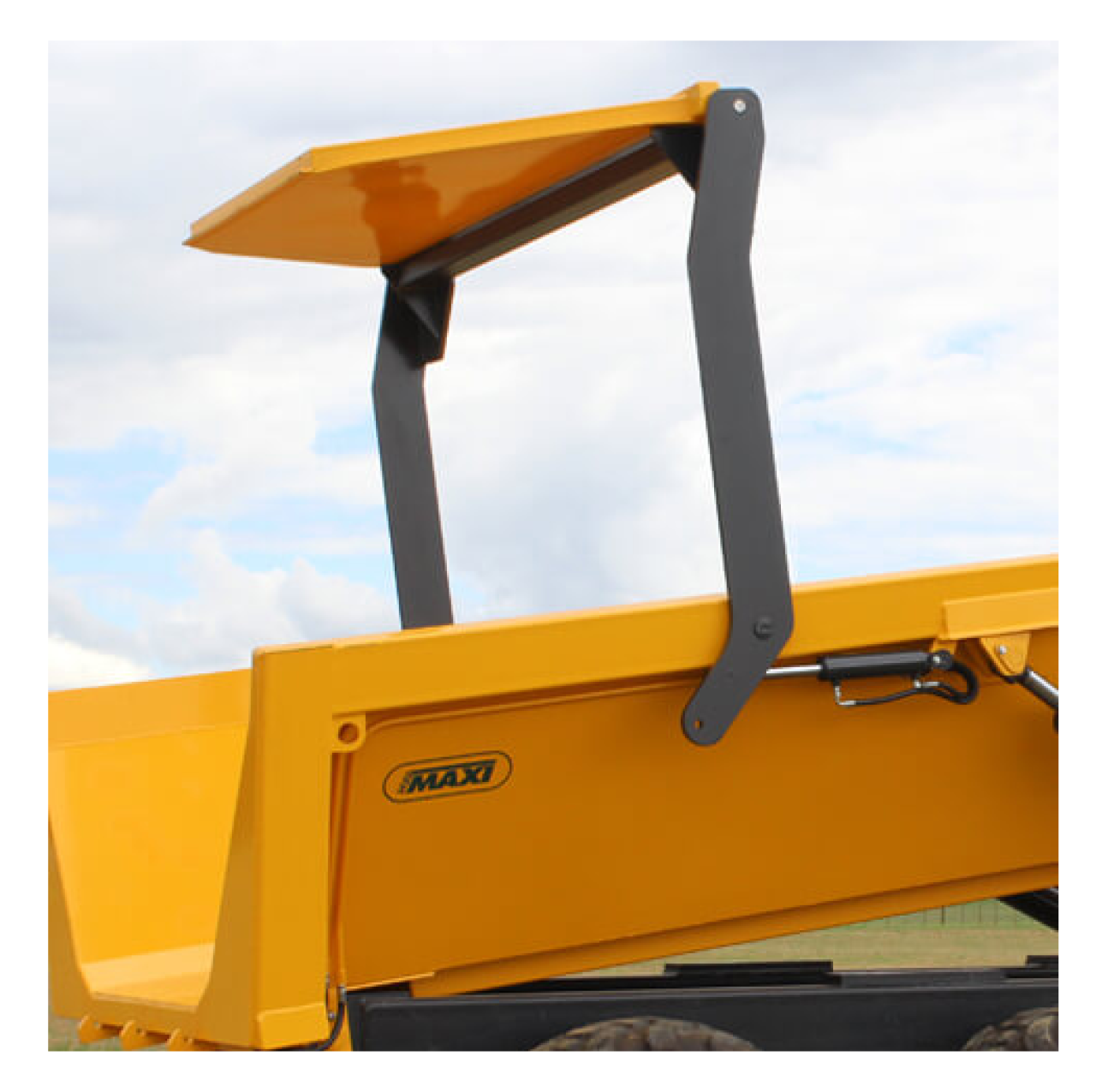

TAILGATE

Hydraulic tailgate has high clearance for big loads and has no trip mechanisms to bend or break. Our doubled hinged tail gate works to quickly release the load to eliminate load pressure. Spreading chains can be fitted.

LIFT RAMS

Two heavy duty double acting rams to lift the bowl, uses less oil from the tractor than gravity fed trailer rams while the tractor needs oil to operate. It allows you to still drive without damage to the tractor.

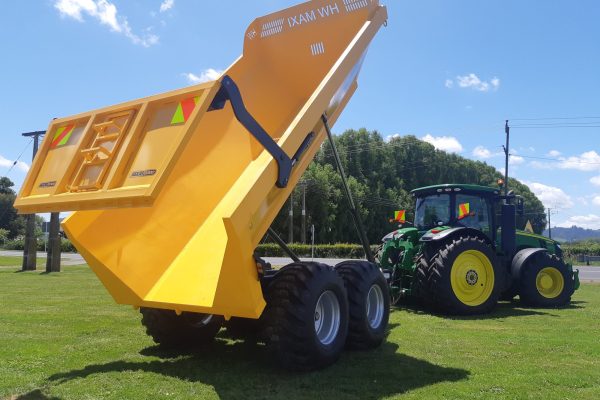

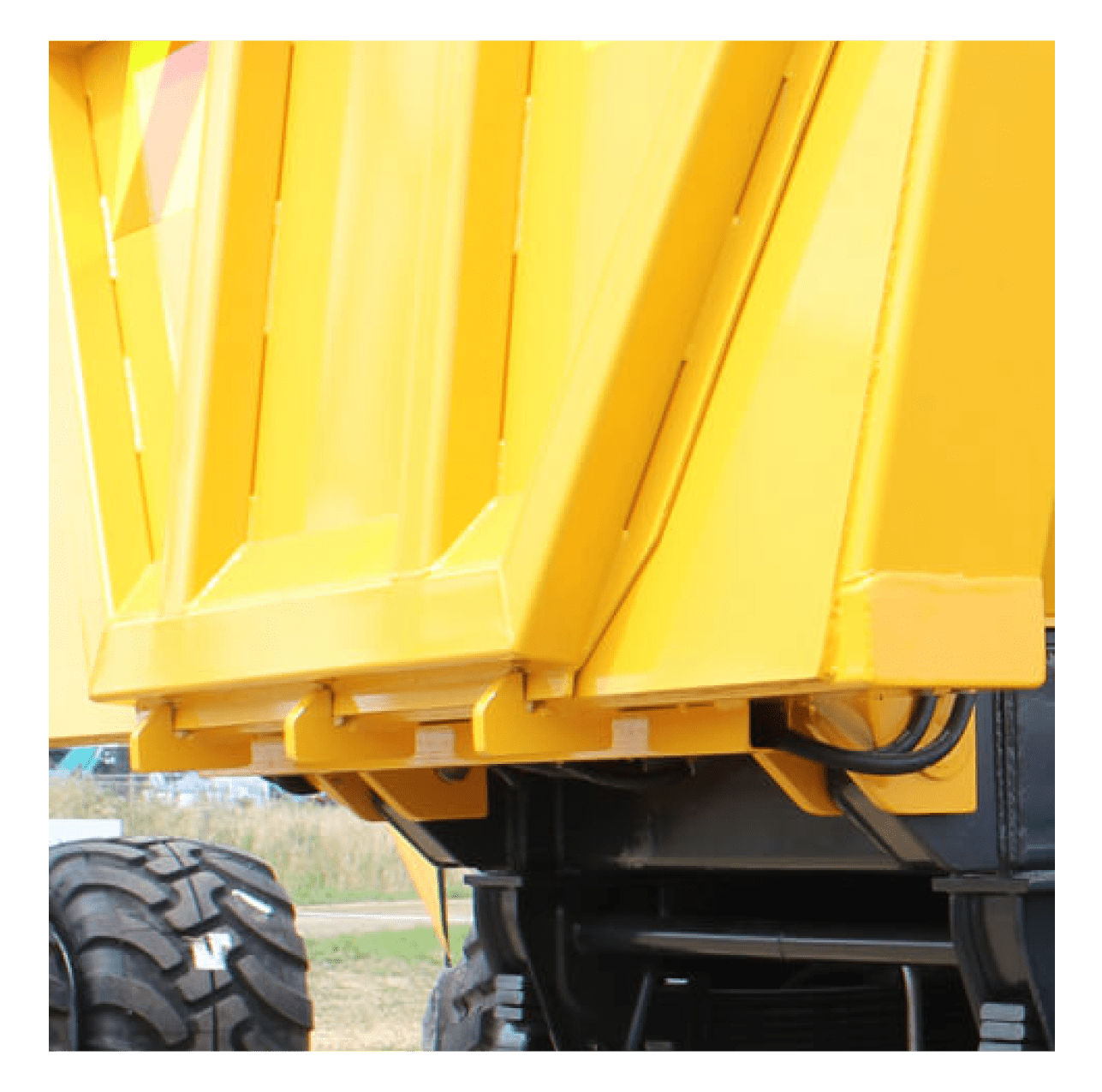

TRIP

The tailgate is automatically opened when the tailgate is lifted. It hinges on the end of the arms to allow heavy material to fall out as soon as it is activated.The tailgate locks shut when it is closed.

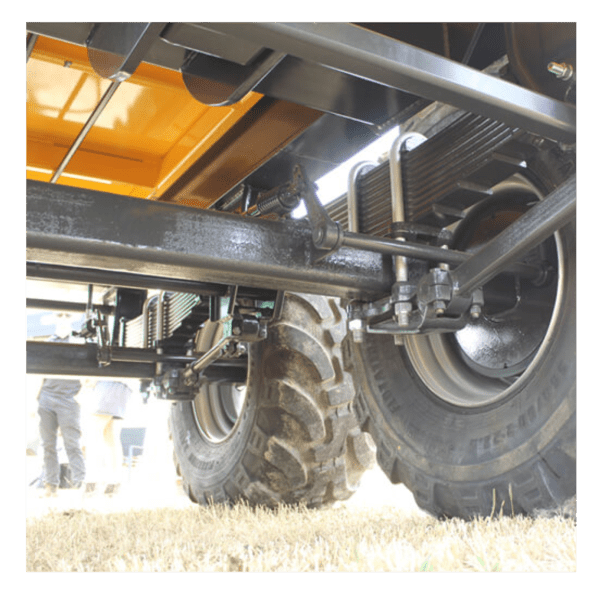

RADIAL TUNED ROCKER AXLE

Our heavy duty rocker axles are offset for a smooth ride over rough and wet terrain, making these units easier to pull and eliminating tyre wear. High speed axles on low profile suspension which gives you a low centre of gravity for stability. Brakes on all 4 wheels.

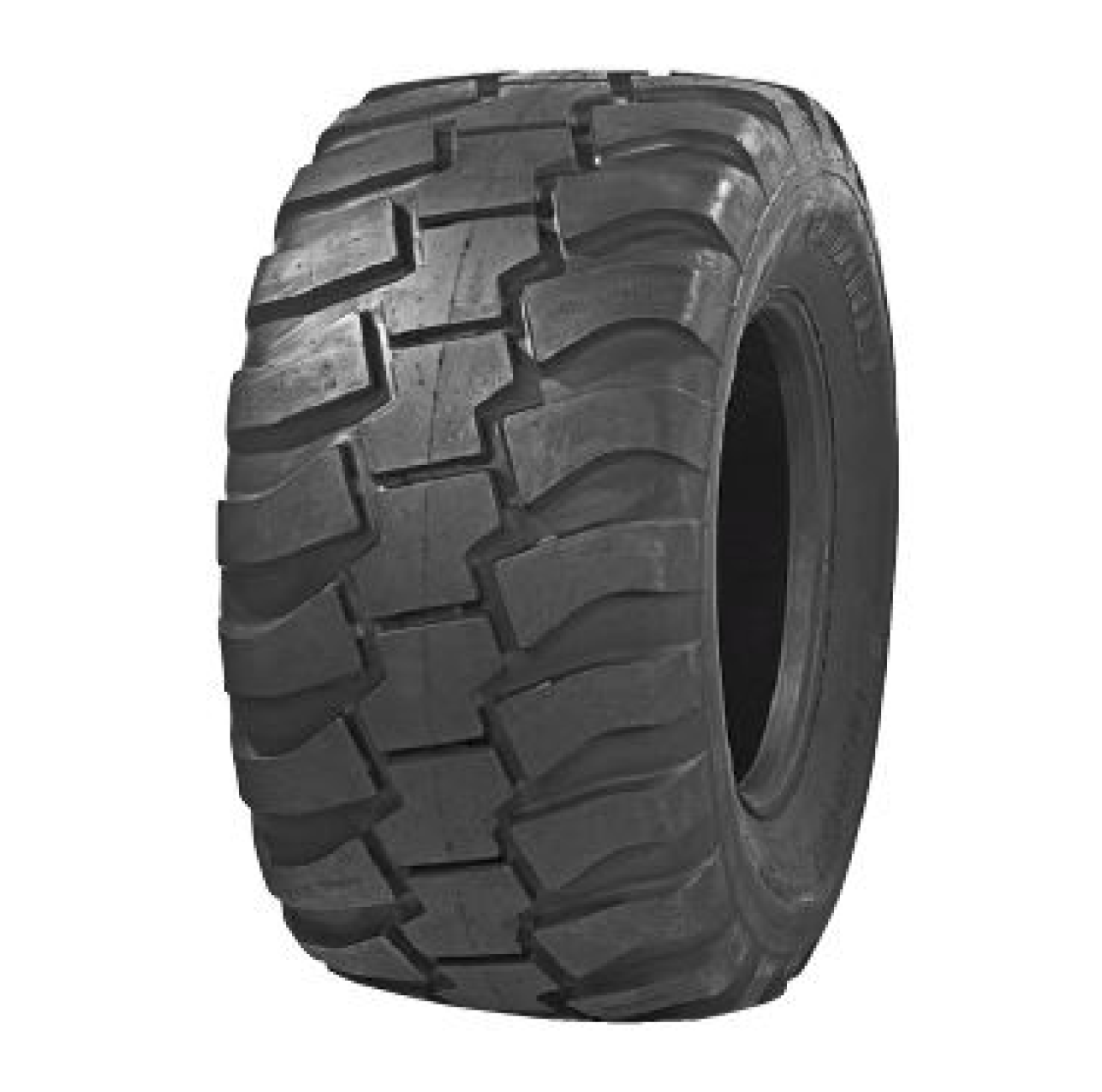

TYRES

High speed radial tyres with steel reinforced side walls. Tyre size can be changed to suit customer requirements.

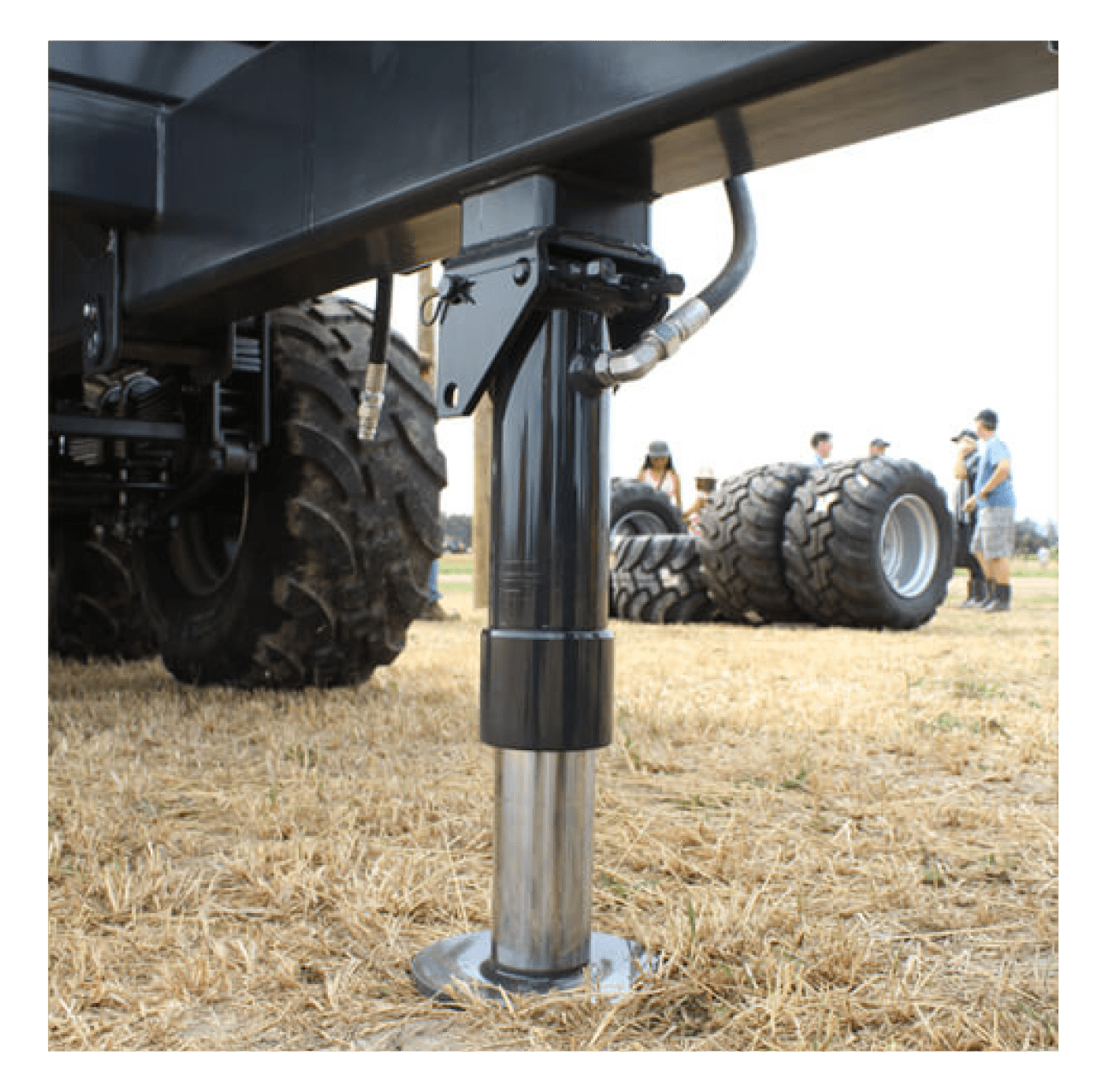

HYDRAULIC JACK STAND

Hydraulic jack stand for ease of use.

BOWL

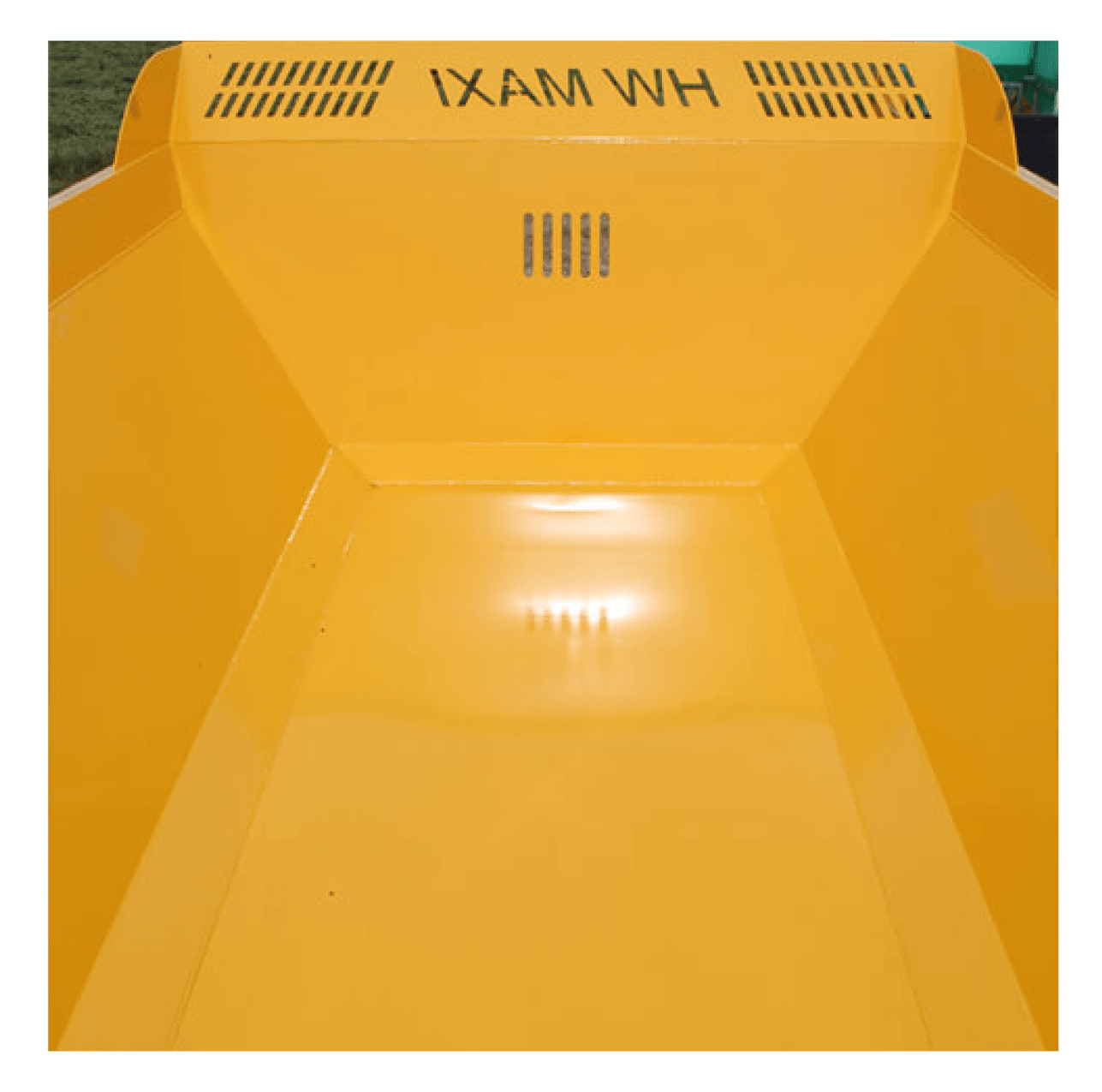

The conical bowl design is made of 6mm wear steel with angled corners to eliminate carry back and a steep tipping angle. Liners can be bolted into the bowl to help empty sticky loads during steep tipping angle.

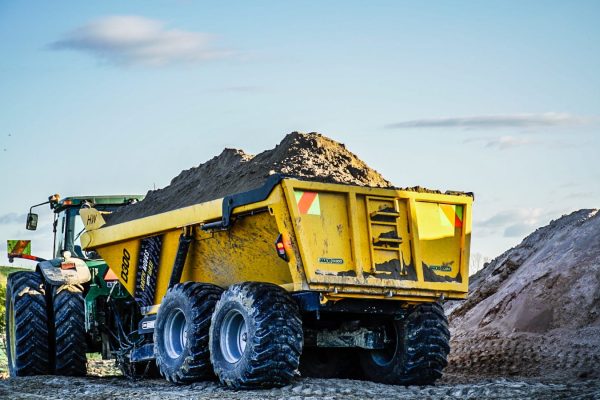

Watch the HW Maxi Construction Dumpers in action.

VIEW MORE ON OUR YOUTUBE CHANNEL

Construction Dumper Model Specifications.

Explore our diverse range of Construction Dumpers.

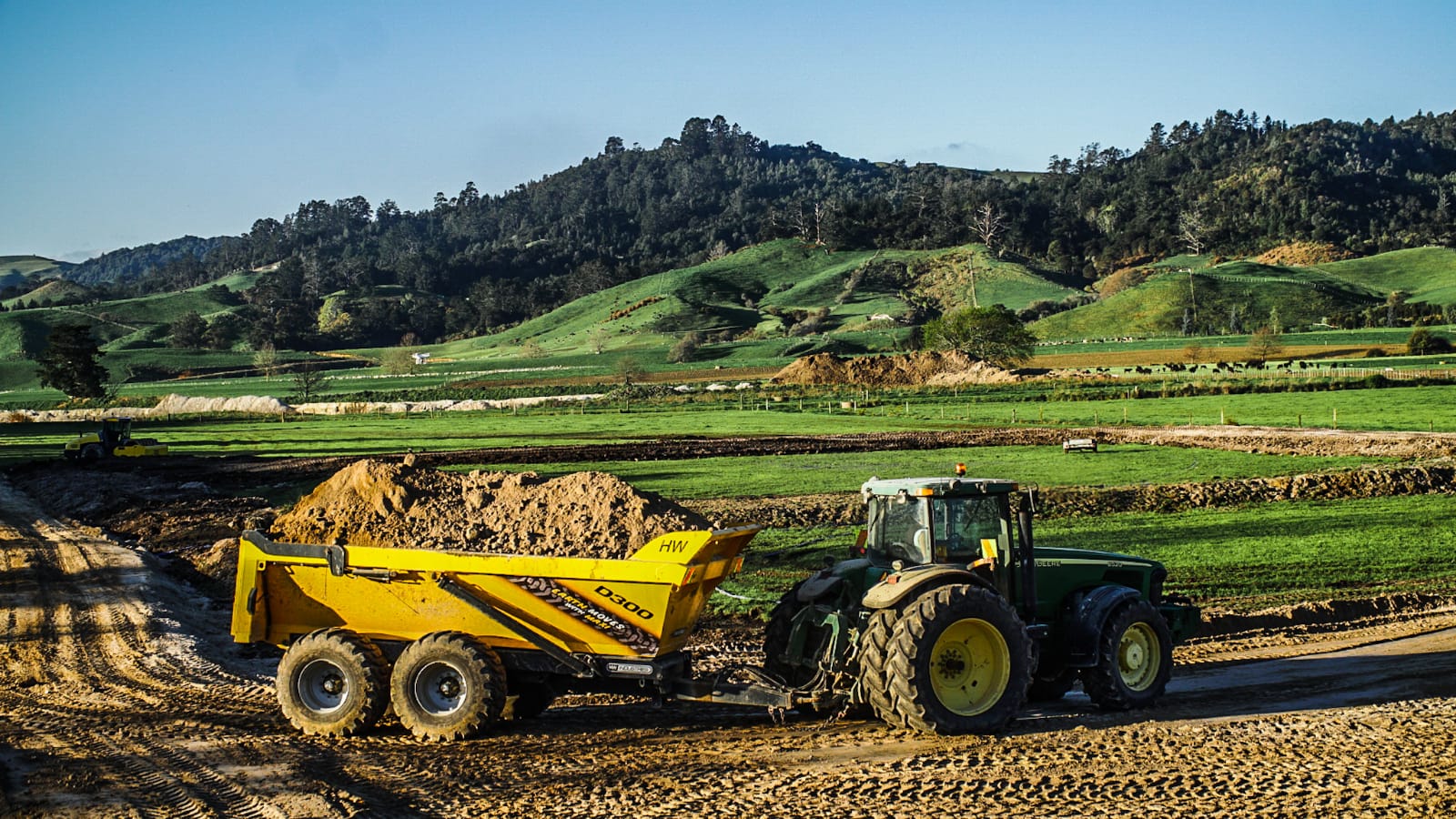

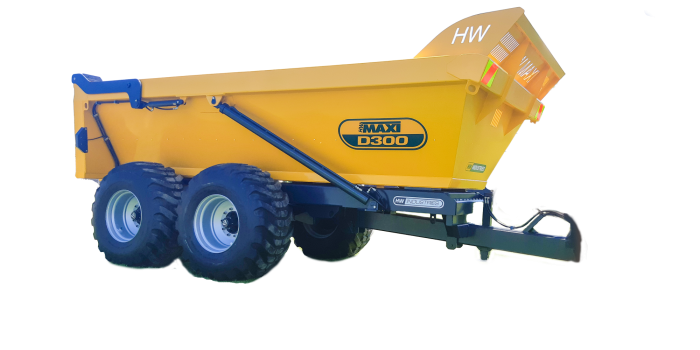

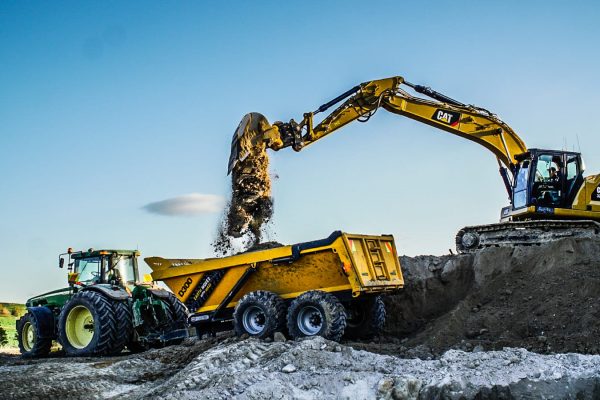

D300

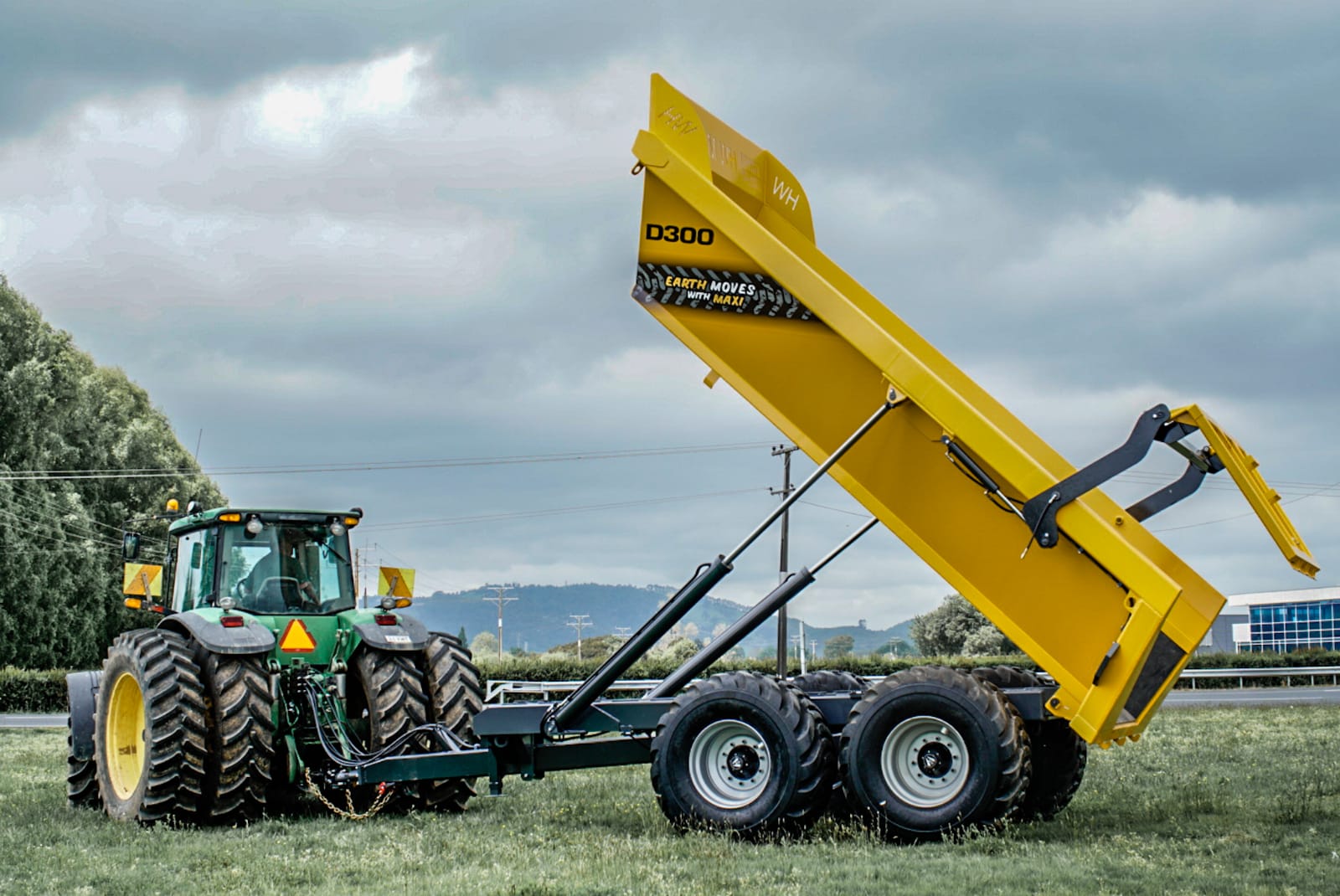

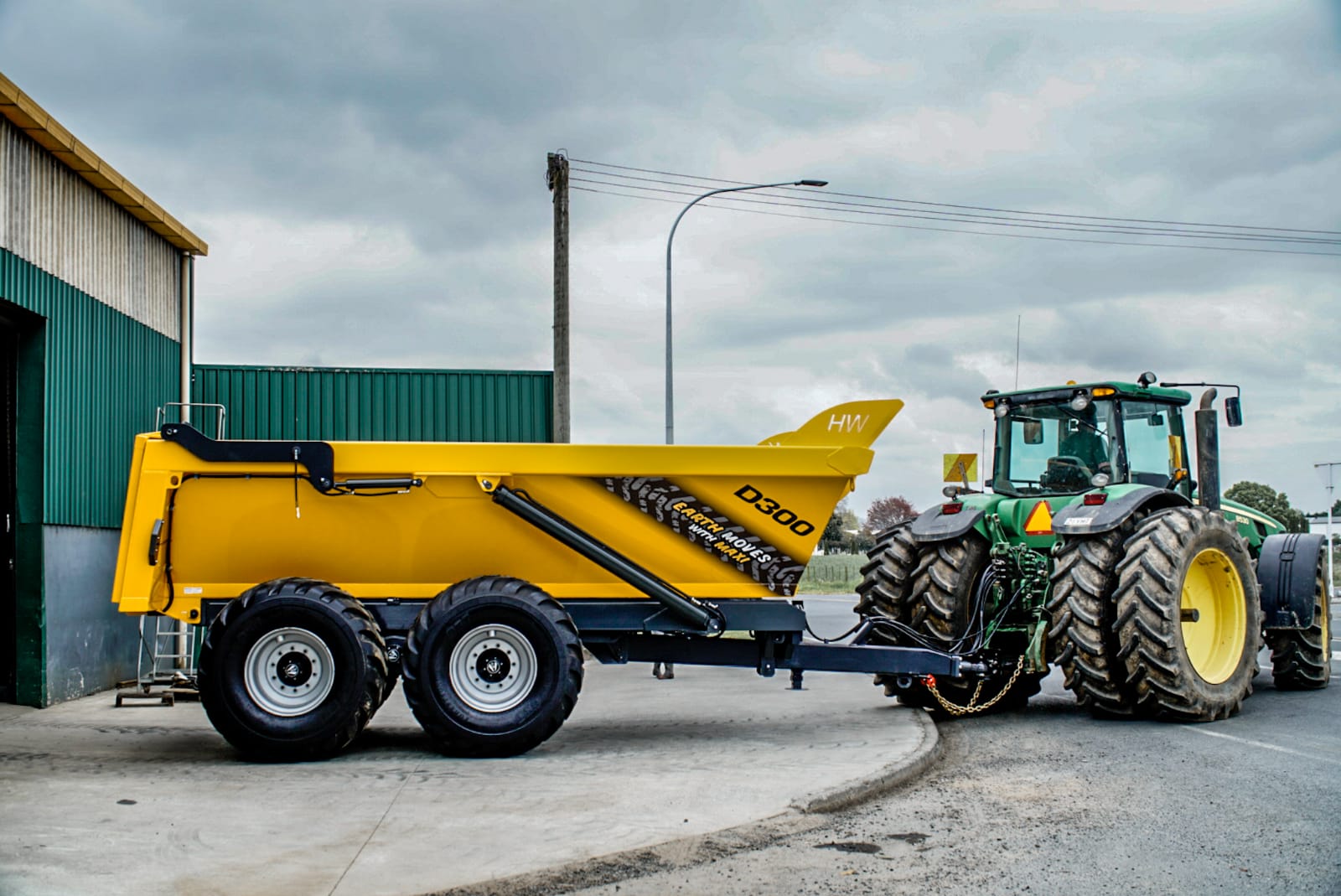

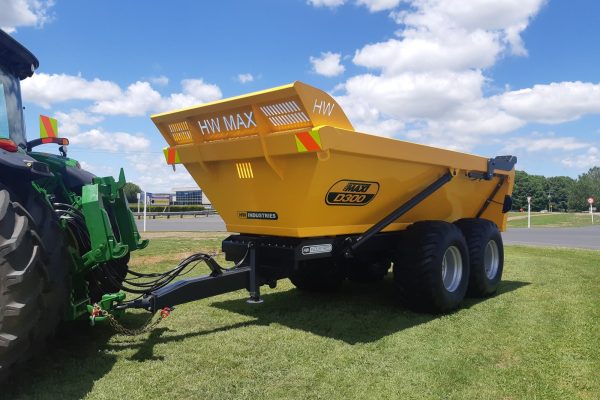

The D300 Model

The D300 Dump Trailer is the largest in our lineup and is designed for tractors with over 300hp. The 12mm wearplate floor ensures it’s built to handle the demands of commercial and industrial applications.

Model: D300

Payload: 30 Tonne

Overall Length: 7200mm

Overall Height: 2600mm

Overall Width: 2900mm

Capacity: +/- 15m³

Tare: 7.5 Tonne

D300 FEATURES:

Wearplate bowl with 12mm floor

4 wheel braked

Radial tuned rocker axle and progressive sprung drawbar

Double hinged hydraulic tailgate

Hydraulic jack stand

Adjustable height drawbar

Lights

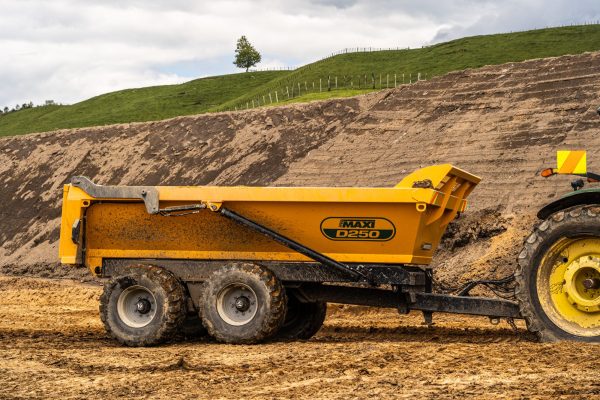

D250

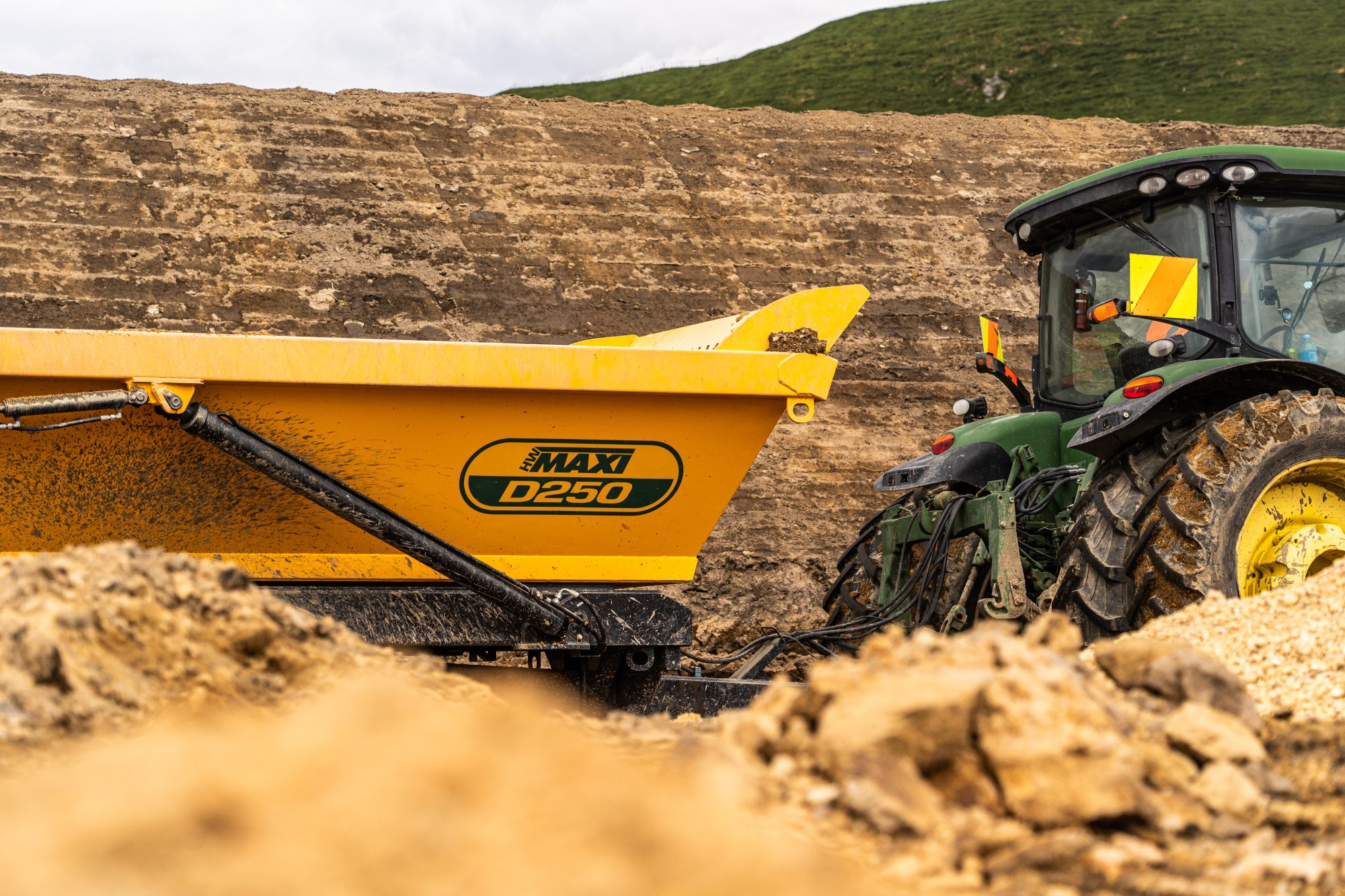

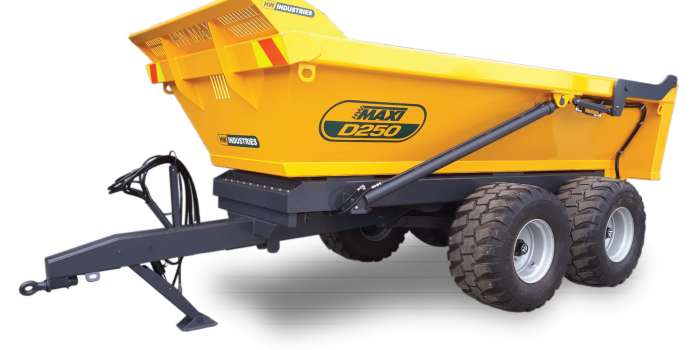

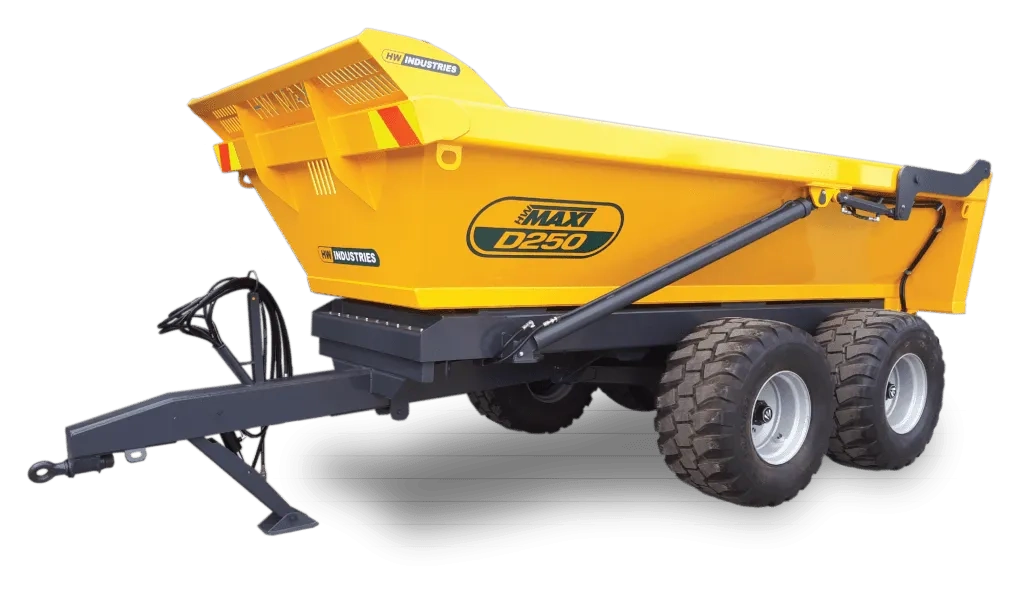

The D250 Model

With a 25-tonne payload and compatibility with 250+ HP tractors, this full-spec dump trailer can be customized with any options. Its large capacity and 12mm wearplate floor make it ideal for heavy-duty construction work.

Model: D250

Payload: 25 Tonne

Overall Length: 7200mm

Overall Height: 2600mm

Overall Width: 2800mm

Capacity: +/- 14m³

Tare: 6.5 Tonne

D300 FEATURES:

Wearplate bowl with 12mm floor

4 wheel braked

Radial tuned rocker axle and progressive sprung drawbar

Double hinged hydraulic tailgate

Hydraulic jack stand

Adjustable height drawbar

Lights

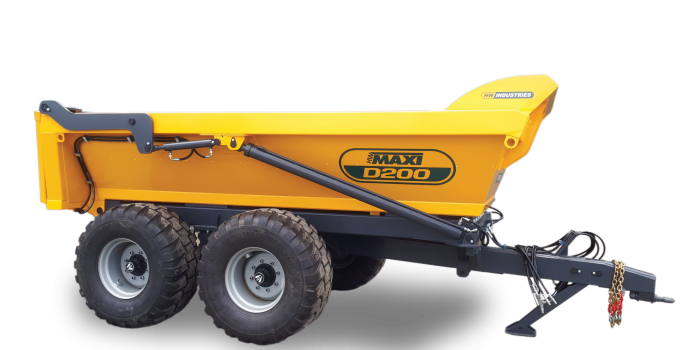

D200

The D200 Model

The D200 Dump Trailer is designed for 180/220 HP tractors, and boosts your payload to 20 tonnes with a conical-shaped bowl and double-hinged tailgate for quick load release. Minimal oil is required, and the radial tuned rocker axles ensure easy towing through soft ground while being gentle on tires when turning on hard surfaces.

Model: D200

Payload: 20 Tonne

Overall Length: 6200mm

Overall Height: 2400mm

Overall Width: 2700mm

Capacity: +/- 10m³

Tare: 5.5 Tonne

D300 FEATURES:

Wearplate bowl with 12mm floor

4 wheel braked

Radial tuned rocker axle and progressive sprung drawbar

Double hinged hydraulic tailgate

Hydraulic jack stand

Adjustable height drawbar

Lights

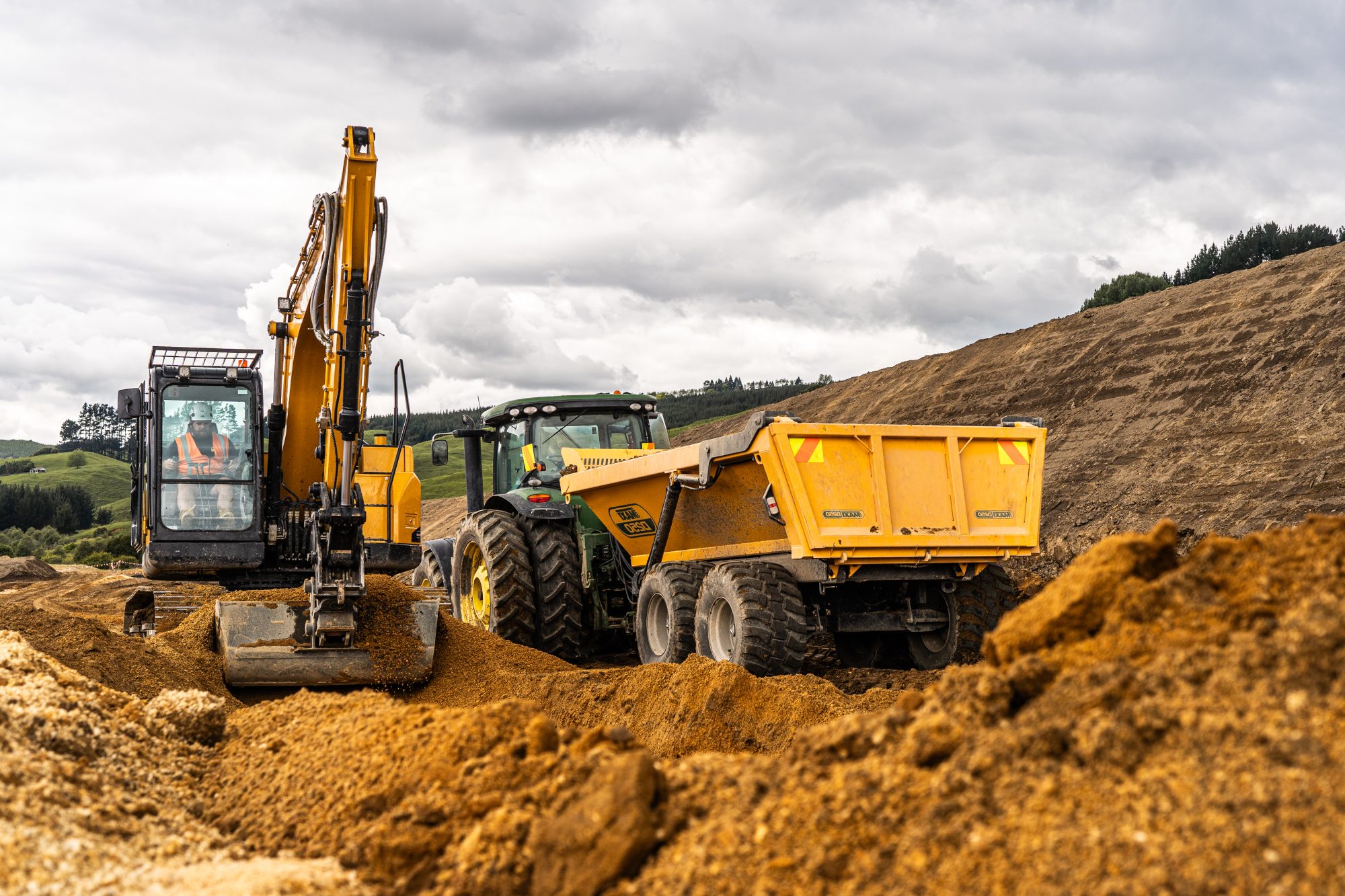

Construction Dumper Applications.

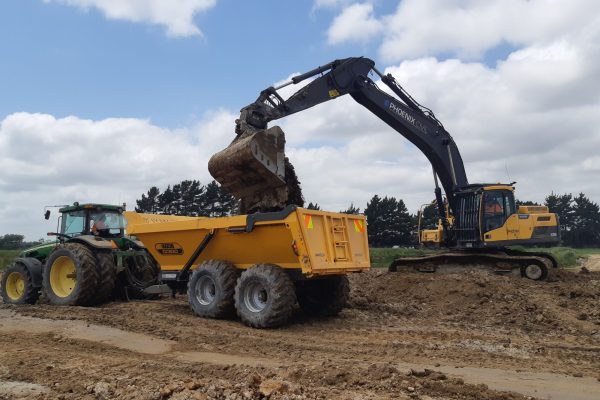

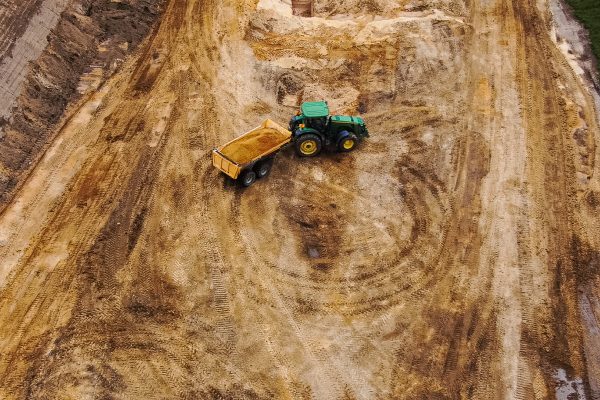

1. Site Preparation

Efficiently transport aggregates and fill materials for leveling and grading.

2. Excavation Cleanup

Haul away excavated soil and debris from construction sites with ease.

3. Material Delivery

Deliver concrete, sand, and other building materials directly to the job site.

4. Infrastructure Projects

Support large-scale infrastructure and road construction with reliable hauling.

5. Real-world Performance

Demonstrate versatility and reliability in demanding environments with high-quality images and videos showcasing the dumpers in action.

Optional Extras.

We can customise your dump trailer to suit your needs. View our optional extras.

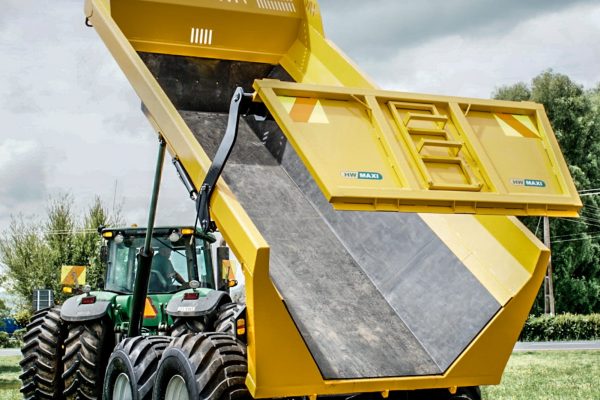

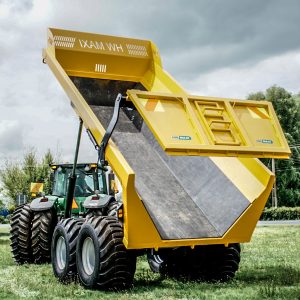

Slippery Liner

Add a slippery liner to your construction dumper to reduce material sticking and enhance unloading efficiency.

Tyre Size

Different tyre options available – POA.

Tail Lights

Make yourself visible at night when working those long hours.

Tyre Tread Options Suitable for any Conditions By Hw Industries in NZ

Tyre Profile

Tailer your trailer tyres to suit your conditions with our selection

of tyre tread options.

Frequently Asked Questions.

What capacities are available for HW Maxi Construction Dumpers?

The HW Maxi dump trailers come in various sizes, with payloads ranging up to 25 tonnes.

What tractor horsepower is required?

Models are available for tractors ranging from 180 HP to 300+ HP.

Can HW Maxi Construction Dumper be customized to meet my specific needs?

Yes, options include customised tyre profile, tail lights, and additional slippery liner. Contact us to find out more about how we can tailor our equipment to suit your project needs, contact us.

Can these dumpers handle soft ground?

Yes, radial tuned rocker axles installed on these dump trailers ensure smooth operation on soft and hard surfaces.

How can I learn more or purchase an HW Maxi Construction Dumper?

To learn more or discuss your specific needs, you can contact us online or call 0800 72 66 77. Our experienced team is ready to assist you with all your questions and requirements, contact us.

What materials are the floors made from?

The floors on the HW Maxi Construction Dumpers are reinforced with 12mm wearplate for durability.
