HW Maxi Tip Trailer Supplier in New Zealand

Over the years, HW Industries have developed a wide range of earthmoving equipment, including the HW Maxi series of tip trailers. With our innovative design features and commitment to quality, HW Industries has become the top choice for many in need of earthmoving and tip trailer solutions.

Benefits:

High Load Capacity: Efficiently transport large volumes of materials, reducing the number of trips needed.
Durable Construction: Withstands harsh conditions, ensuring long-term reliability and lower maintenance costs.
Advanced Hydraulic Systems: Smooth and controlled tipping operations, increasing safety and ease of use.
Corrosion-Resistant Coating: Prolongs the trailer’s lifespan by protecting against rust and wear.

DOWNLOAD BROCHURE

REQUEST A QUOTE

Key Features

Side Tie Rails

Fully welded along the edge to shield the hinged sides from potential damage caused by gate posts and strainers.

Height adjustable and replaceable tow eye

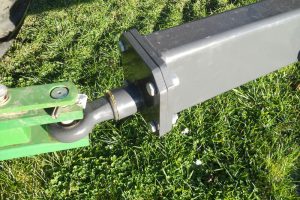

Height Adjustable & Replaceable Tow Eye

The tow eye is welded to a bolt-on plate, allowing for easy replacement if the swivel tow eye or tube wears out. Simply remove the four bolts and install a new unit.

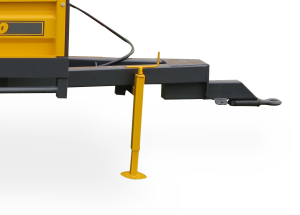

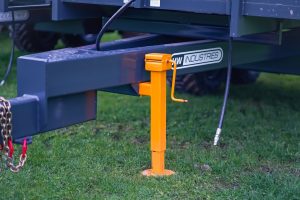

Side Wind Jack Stand

Double-speed side wind jacks make loading and unloading effortless. The jacks are easy to wind and can be removed to allow the unit to tuck neatly into the main frame.

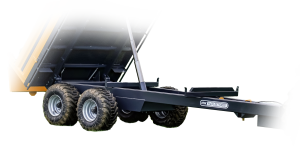

Ultimate Axle Placement for Stability

Our radial-tuned rocker axle (RTRA) is positioned near the rear of the trailer to enhance stability during tipping or spreading. The rear pivots are double plated for added durability.

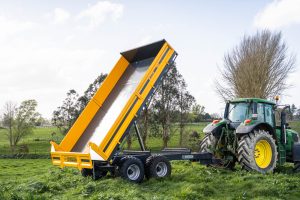

Steep 55° Tipping Angle

With an impressive 55° tipping angle, this design ensures fast and complete unloading, even for stubborn materials. The steep incline minimizes residue, providing efficient and thorough dumping every time.

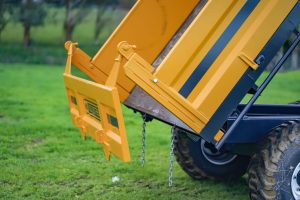

Auto Tailgate Release

The release trip automatically engages and resets with each deck tip, eliminating the need for wire ropes or pulleys. Additionally, the tailgate features an extra-deep opening to handle bulky loads with ease.

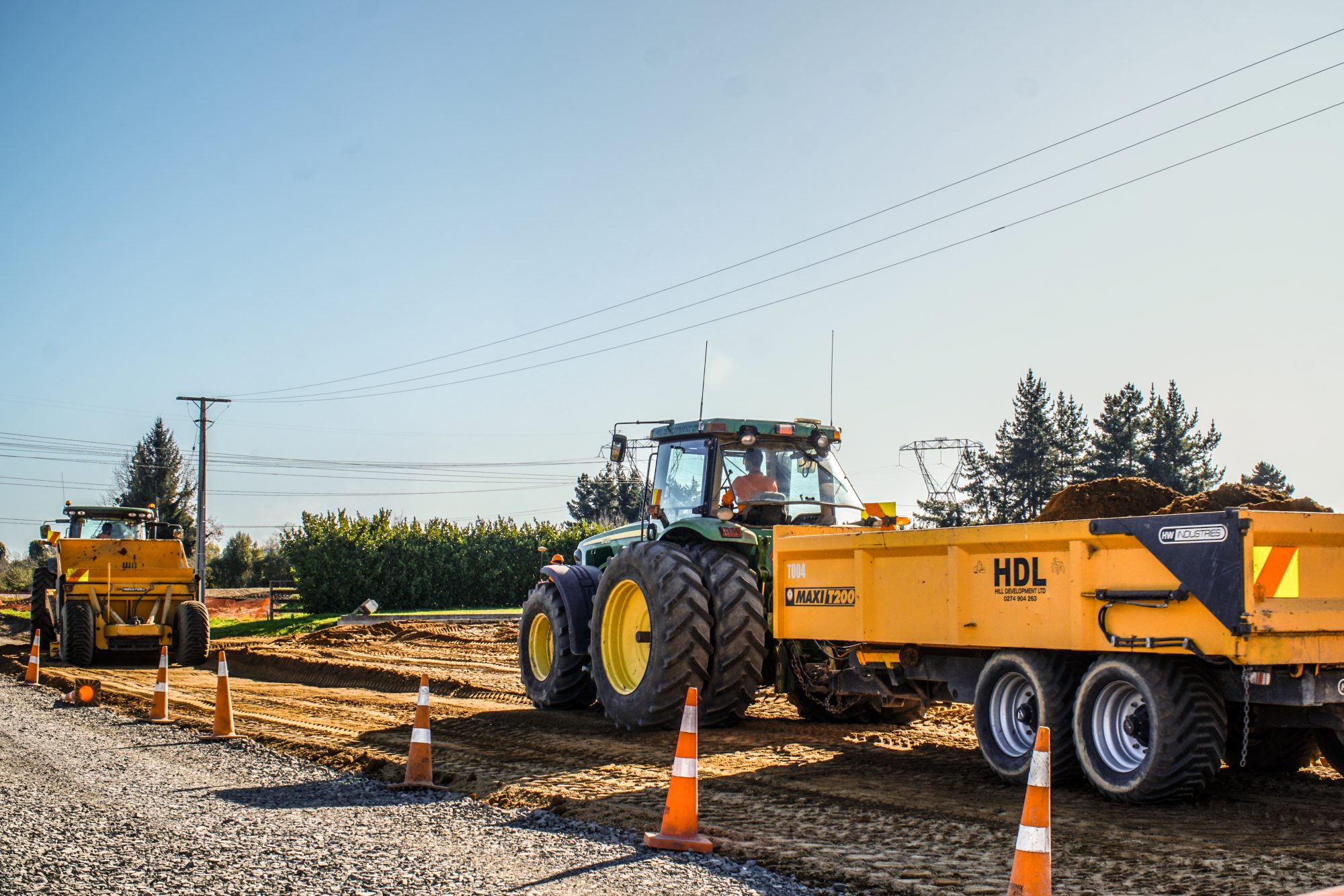

Watch the HW Maxi Tip Trailers in action.

VIEW MORE ON OUR YOUTUBE CHANNEL

Tip Trailer Model Specifications.

Explore our diverse range of Tip Trailers.

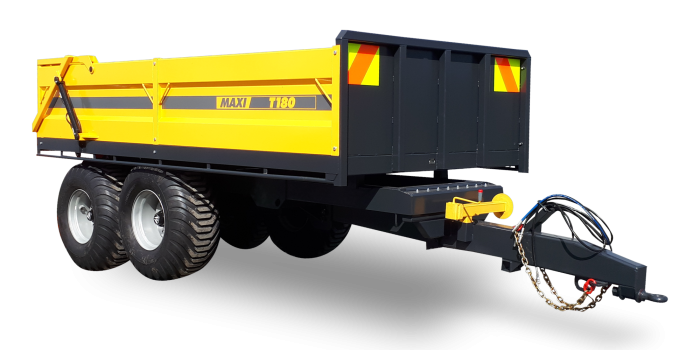

T180

The T180 Model

The T180 Tip Trailer is the full-size large contractors’ model with a very heavy-duty frame. With high removable sides and full hydraulic high life tailgate, this gives it large capacity when shifting soil or with a silage cage fitted (check optional extras for this). We can custom spec our trailers to suit customer’s needs.

Model: T180

Payload: 18 Tonne

Deck Size: 4.8 x 2.5m

Deck Thickness: 6mm steel

Deck Height: 1.2m

T180 FEATURES:

800mm high, two piece, removeable sides

900mm high headboard

Industrial coated finish

Swivel tow eye, sprung drawbar

Built-in tie rails

Radial tuned tandem rocker axle with 600/50×22.5 tyres

4 wheel brakes

Steep 55° tipping angle

Multi stage ram

Mainframe is 200x100x9 RHS

T140

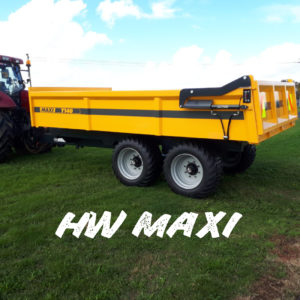

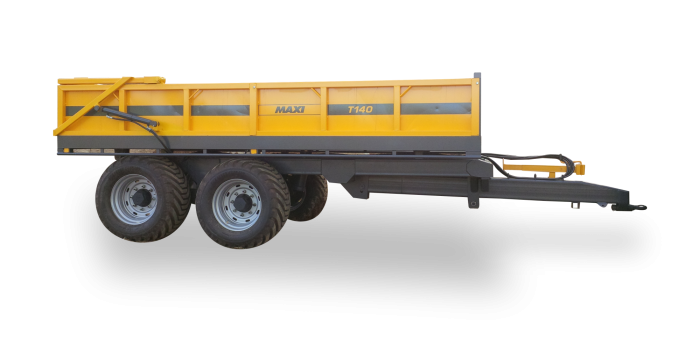

The T140 Model

This model has full spec making it a strong, robust and durable contractor or large farmer choice. With floatation tyres, brakes, suspension drawbar, hydraulic tailgate and a RTRA axle it makes work easy. Sides can be removed or fitted as a welded tube body to suit your application.

Model: T140

Payload: 14 Tonne

Deck Size: 4.8 x 2.5m

Deck Thickness: 6mm steel

Deck Height: 1.2m

T140 FEATURES:

Hydraulic tailgate for 1.5m high opening

800mm high, two piece, removeable sides

700mm high headboard

Industrial coated finish

Swivel tow eye, sprung drawbar, brakes

Built-in tie rails

Radial tuned tandem rocker axle with 550/45×22.5 tyres

Steep 55° tipping angle

Multi stage ram

Mainframe is 200x100x6 RHS

T120

The T120 Model

The T120 Tip Trailers is the contractor’s starter with features you would expect. Large capacity and wide floatation tyres make for a good contractor’s choice to suit 120/150 HP tractors. Having removable sides means a silage bin can be easily put on (check optional extras for this feature). Removeable tailgate and hinge post for carting branches and bulky loads.

Model: T120

Payload: 12 Tonne

Deck Size: 4.8 x 2.4m

Deck Thickness: 6mm steel

Deck Height: 1.1m

T120 FEATURES:

Tailgate auto trip release with spreading chains

500mm high, two piece, hinged, removeable sides

600mm high headboard

Industrial coated finish

Swivel tow eye, height adjustable and replaceable

Built-in tie rails

Radial tuned tandem rocker axle with 500/50×17 tyres

Hydraulic brakes on front axles

Steep 55° tipping angle

Multi stage ram

Mainframe is 200x100x6 RHS

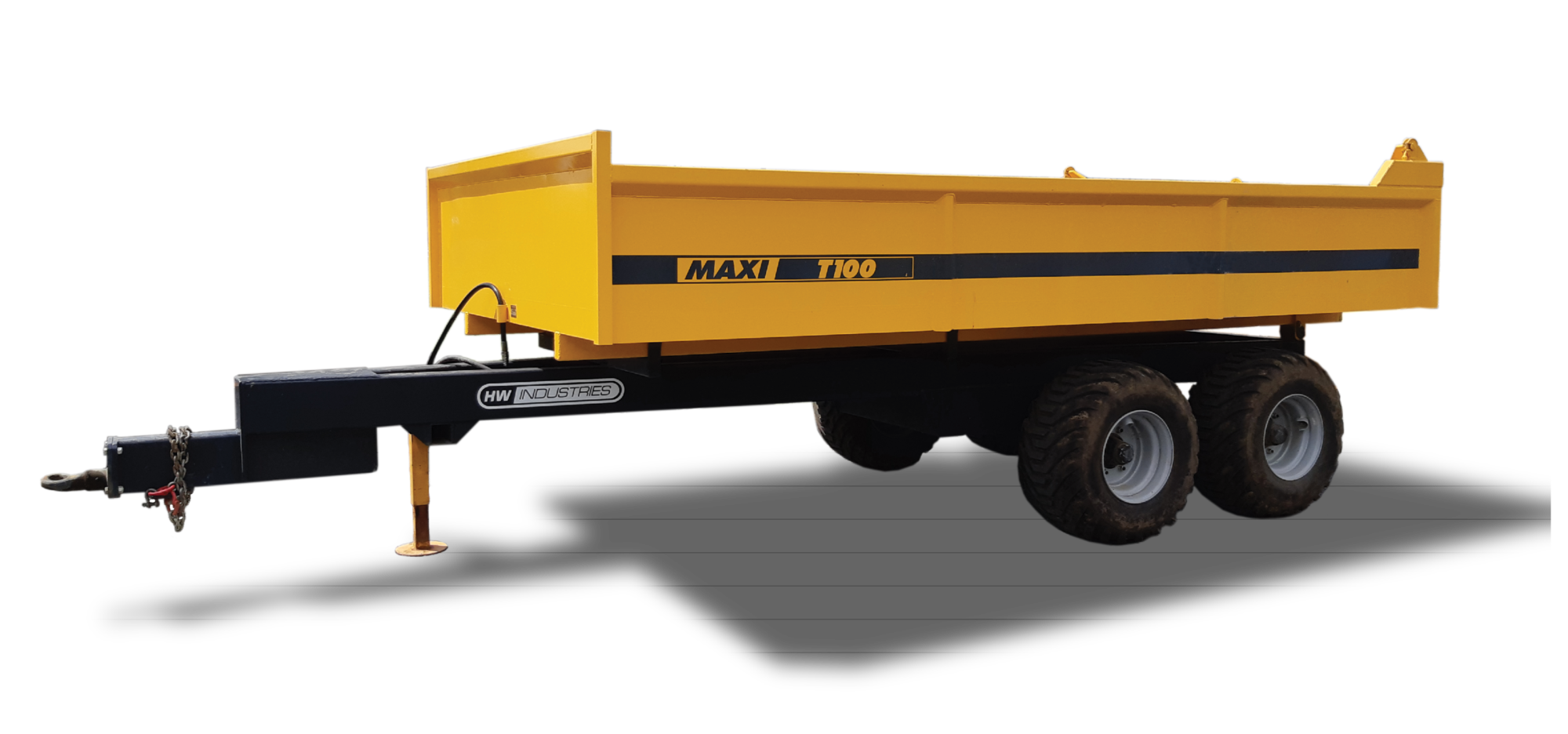

T100

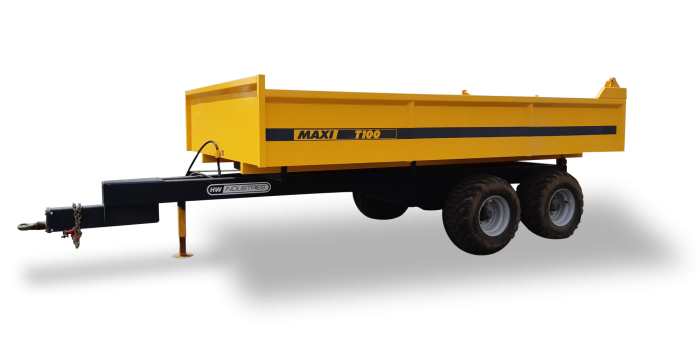

The T100 Model

For the serious farmer who hauls heavy loads, the T100 Tip Trailer is a standout choice. It features radial-tuned rocker axles, exclusive to HW Maxi equipment. With a robust 6mm deck plate, removable hinged sides, and an optional fully welded tub deck, this model is built to perform and tough to surpass.

Model: T100

Payload: 10 Tonne

Deck Size: 4.4 x 2.4m

Deck Thickness: 6mm steel

Deck Height: 1.1m

T100 FEATURES:

Tailgate auto trip release with spreading chains

500mm high, two piece, hinged, removeable sides

Extra high tailgate to empty lumpy loads easily

600mm high headboard

Industrial coated finish

Swivel tow eye, height adjustable and replaceable

Built-in tie rails

Radial tuned tandem rocker axle with 400/60×15.5 tyres

Steep 55° tipping angle

Multi stage ram

Mainframe is 200x100x6 RHS

T80

HW Maxi series a Tip Trailer Solution by HW Industries in NZ

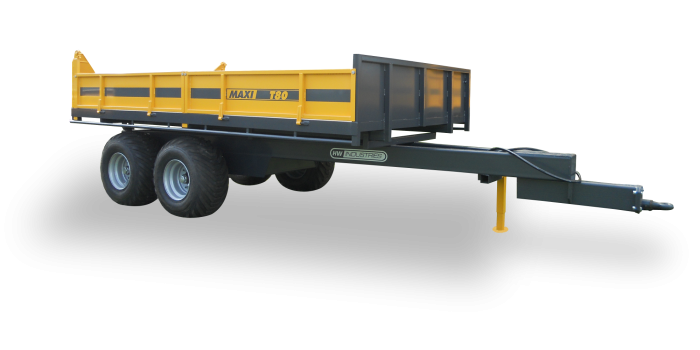

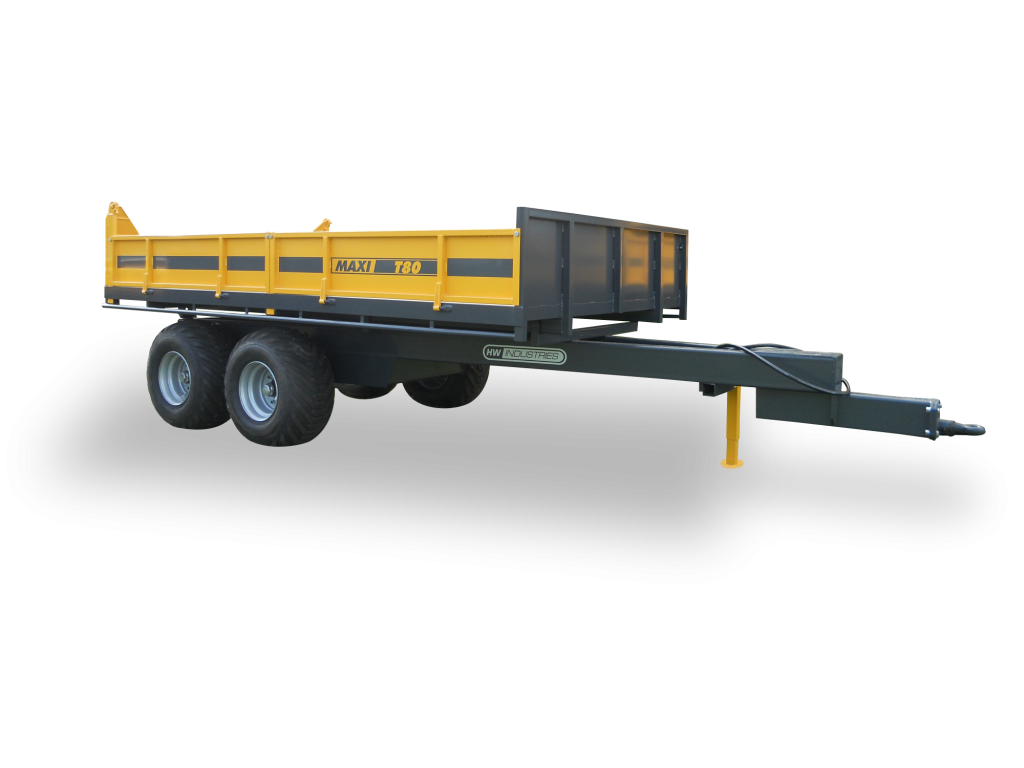

The T80 Model

A very popular size to suit 80/100 HP tractors, equipped with all the advanced features found in its large counterparts. The radial tuned rocker axle facilitates effortless towing, enhances steering minimizes tire wear, and diminishes trailer bounce.

Model: T80

Payload: 8 Tonne

Deck Size: 4 x 2.4m

Deck Thickness: 6mm steel

Deck Height: 1.1m

T80 FEATURES:

Tailgate auto trip with spreading chains

400mm high, two piece, hinged, removeable sides

Extra high tailgate pivots to empty lumpy loads easily

500mm high headboard

Industrial coated finish

Swivel tow eye, height adjustable and replaceble

Built-in tie rails

Radial tuned tandem rocker axle with 400/60×15.5 tyres

Steep 55° tipping angle

Mainframe is 200x100x6 RHS

T60

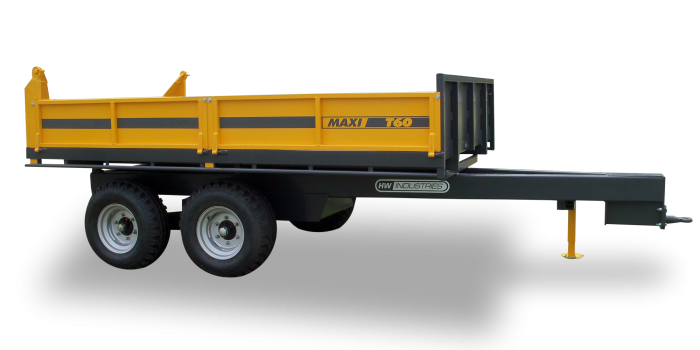

The T60 Model

The tandem rocker axle T60 trailer is ideal for a big load. Value for money and popular on areas where surface damage needs to be kept to a minimum. The first of the range with a radial tuned rocker axle. This set up gives you a light footprint and makes an easy towing trailer. Suits tractors with 60/80 HP. Ideal small farmers unit at an affordable price.

Model: T60

Payload: 6 Tonne

Deck Size: 3.6 x 2.4m

Deck Thickness: 4mm steel

Deck Height: 1m

T60 FEATURES:

Tailgate auto trip with spreading chains

Pressed 300mm high bolted sides, optionally hinged

400mm high headboard

Industrial coated finish

Swivel tow eye and built-in tie rails

Radial tuned tandem rocker axle with 10/75×15.3 tyres

Different tyre options available

Steep 55° tipping angle

Multi stage ram

Mainframe is 150x75x6 RHS

Single axle model option

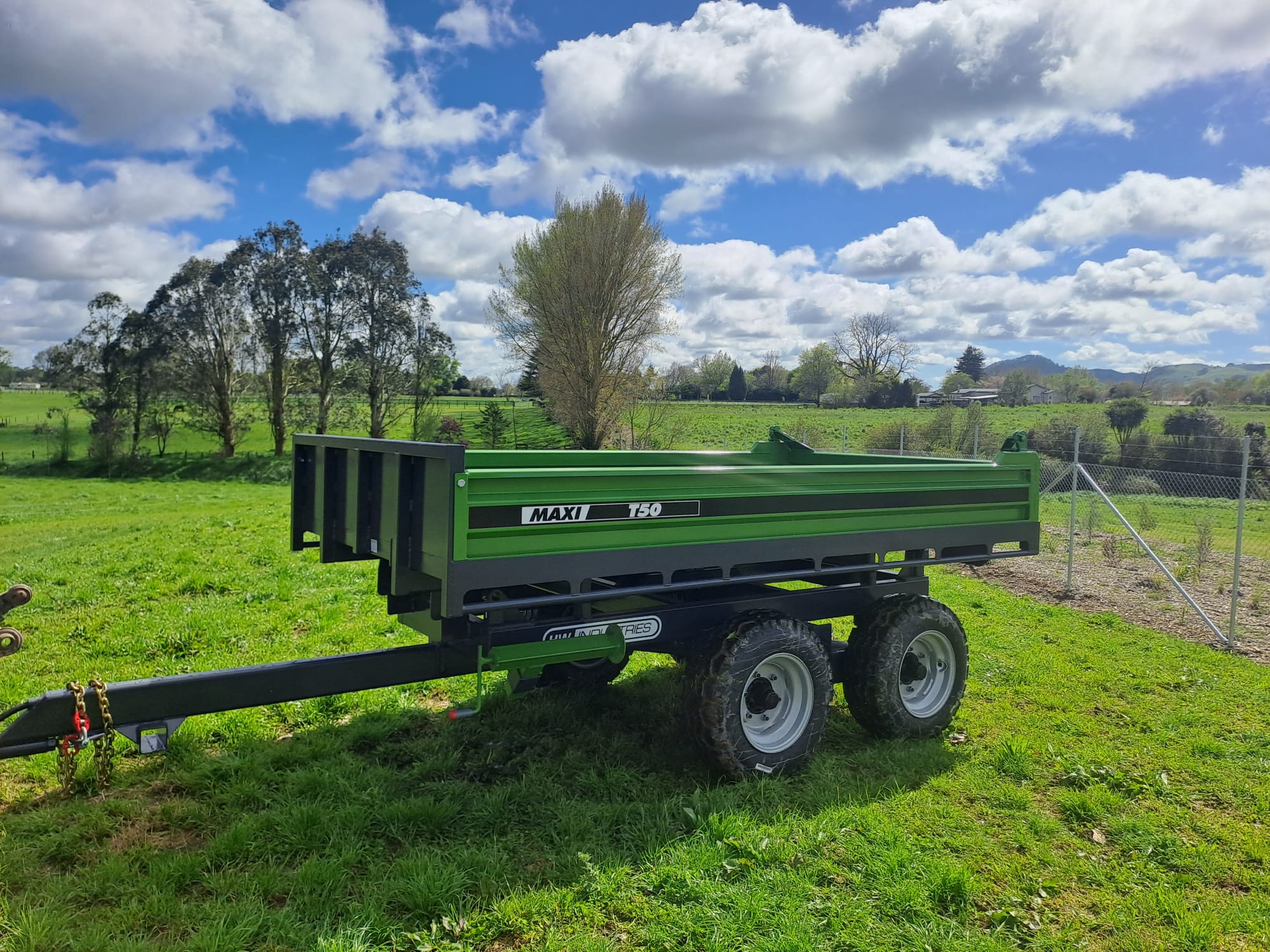

T50

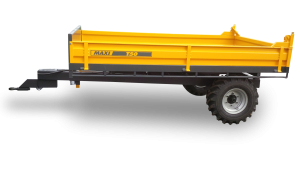

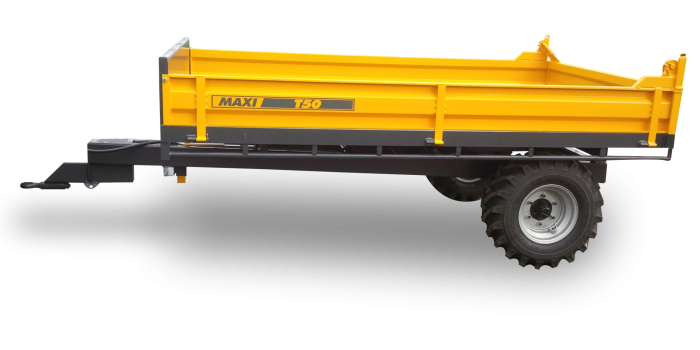

The T50 Model

The T50 is a popular size for 50/60 HP tractors. Strong frame and all the necessary features this trailer will please. Additionally, equipped with a steel deck for durability, a wind jackstand for stability, and with the convenience of an auto tailgate release.

Model: T50

Payload: 5 Tonne

Deck Size: 3.3 x 2.4m

Deck Thickness: 4mm steel

Deck Height: 0.9m

T50 FEATURES:

Tailgate auto trip with spreading chains

Pressed 300mm high bolted sides, optionally hinged

400mm high headboard

Industrial coated finish

Swivel tow eye

Built-in tie rails

Single axle with 11.5/80×15.3 tyres

Different tyre options available

Steep 55° tipping angle

Multi stage ram

Mainframe is 150x75x6 RHS

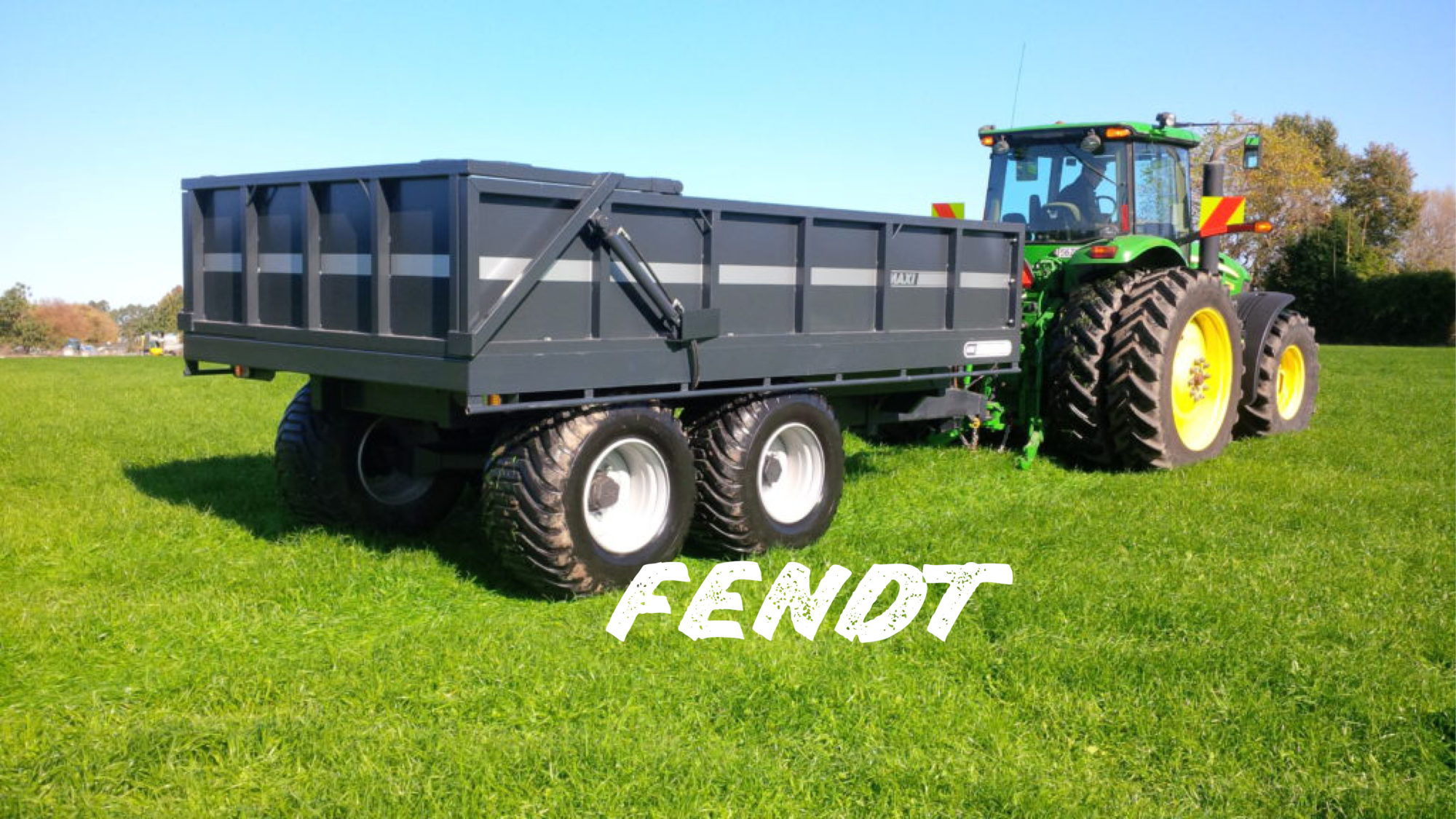

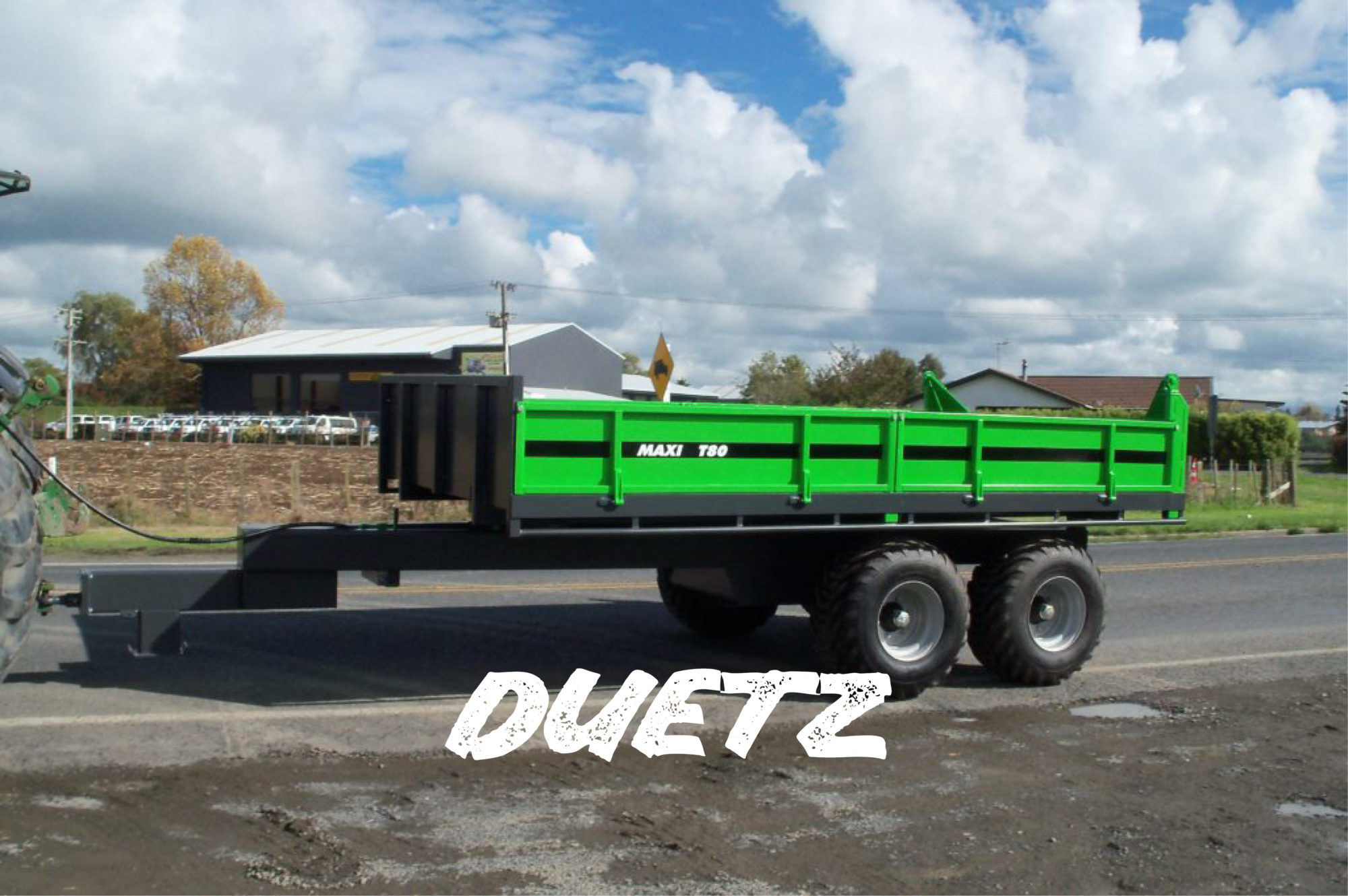

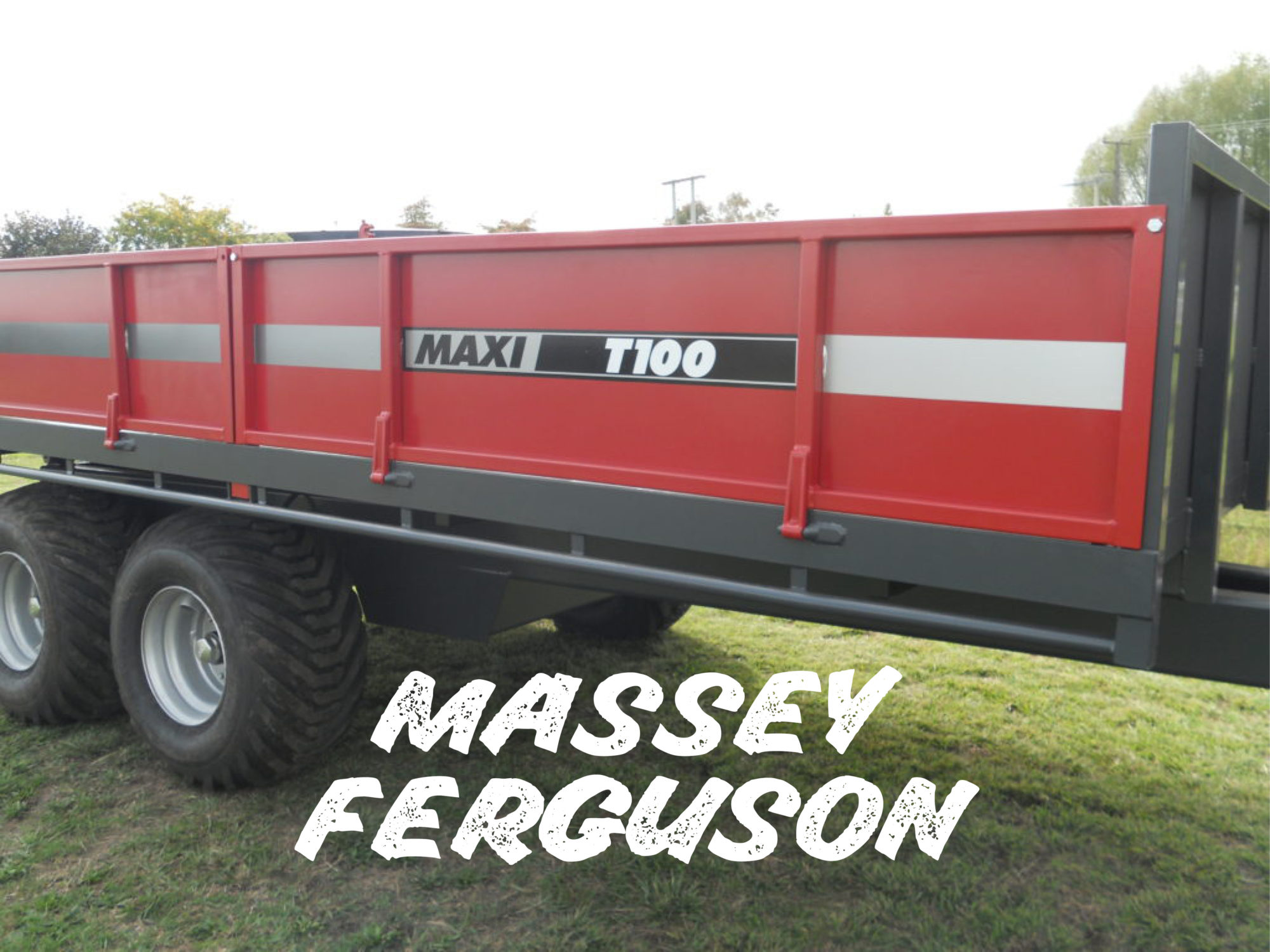

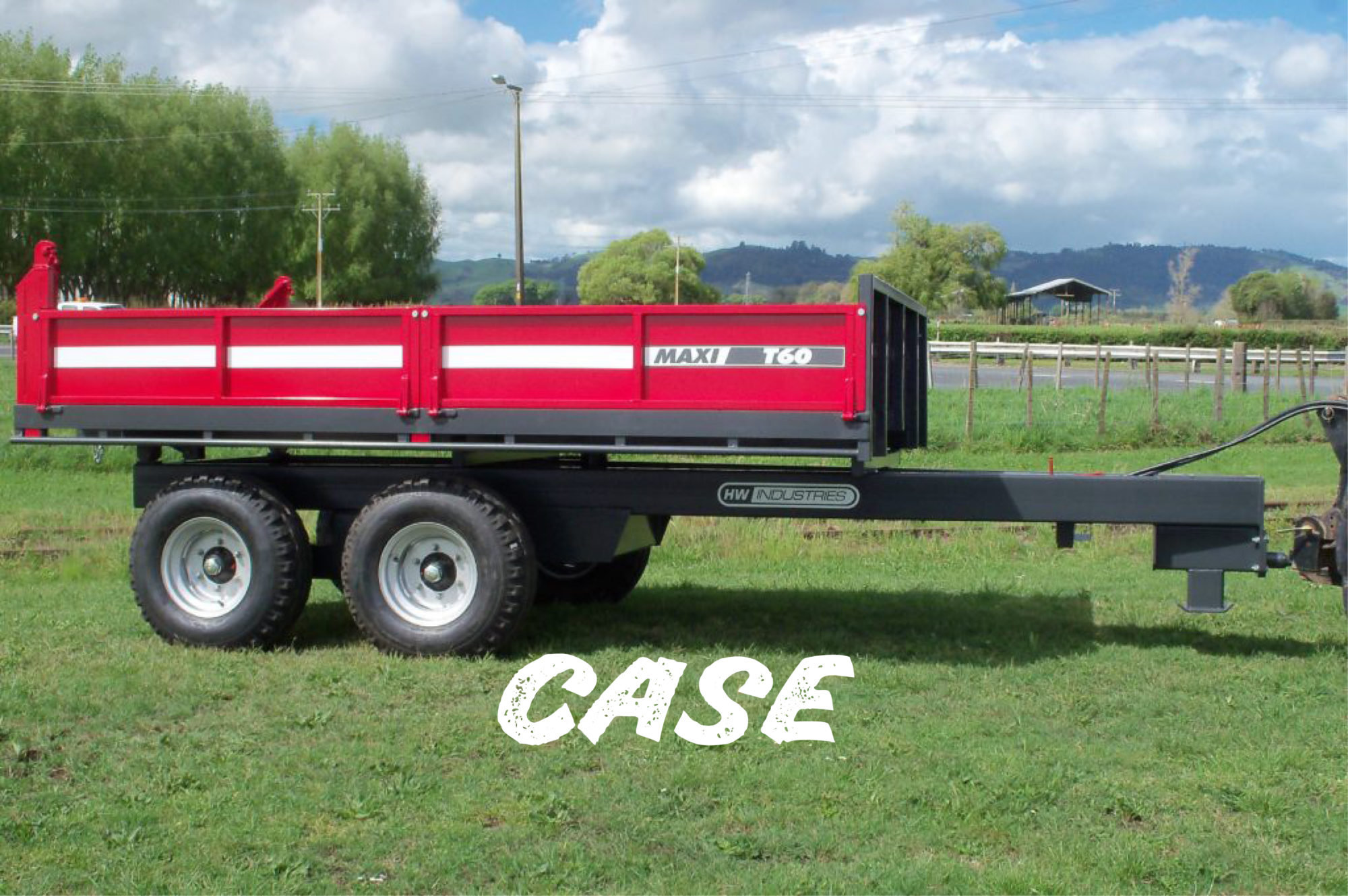

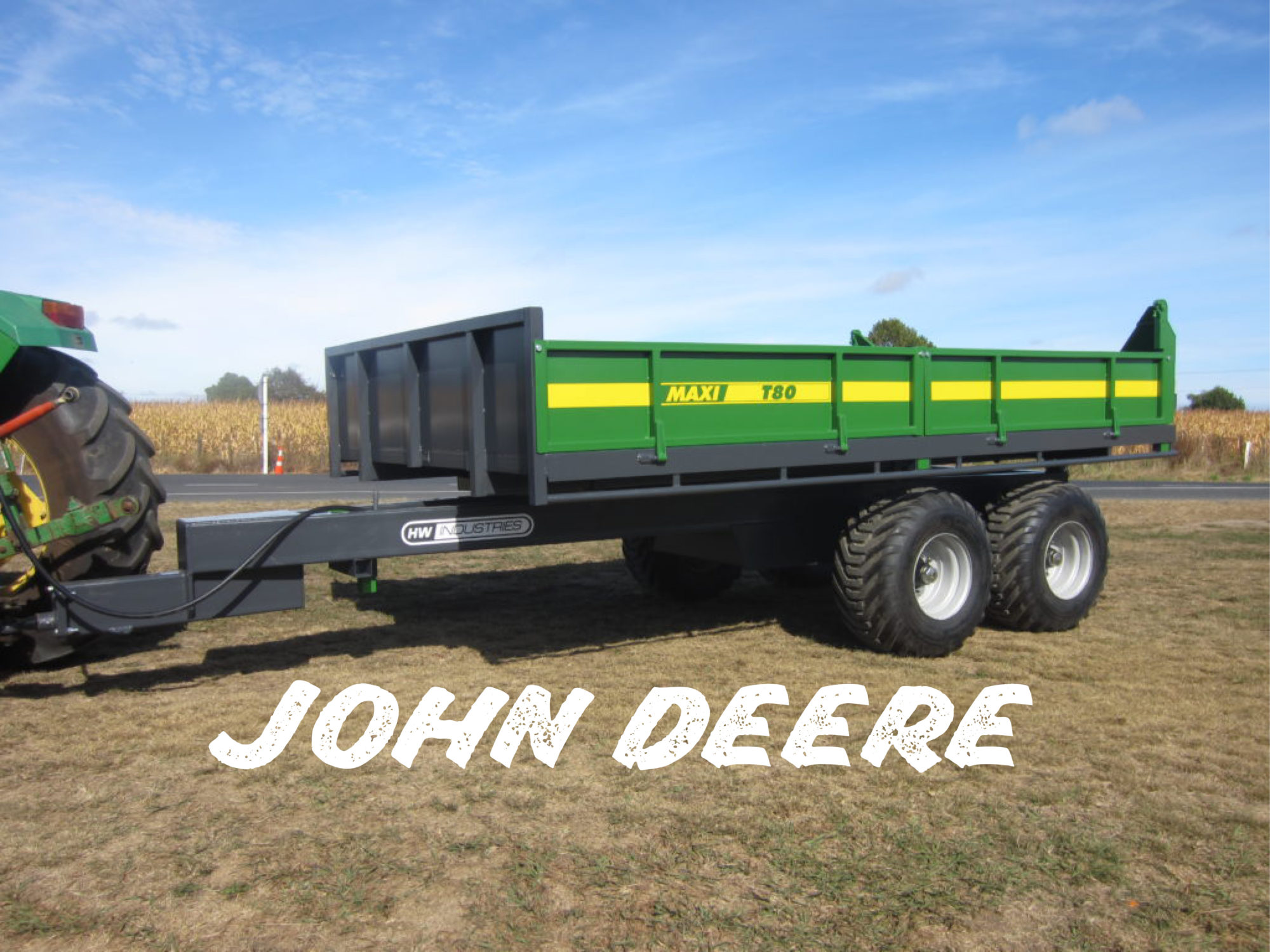

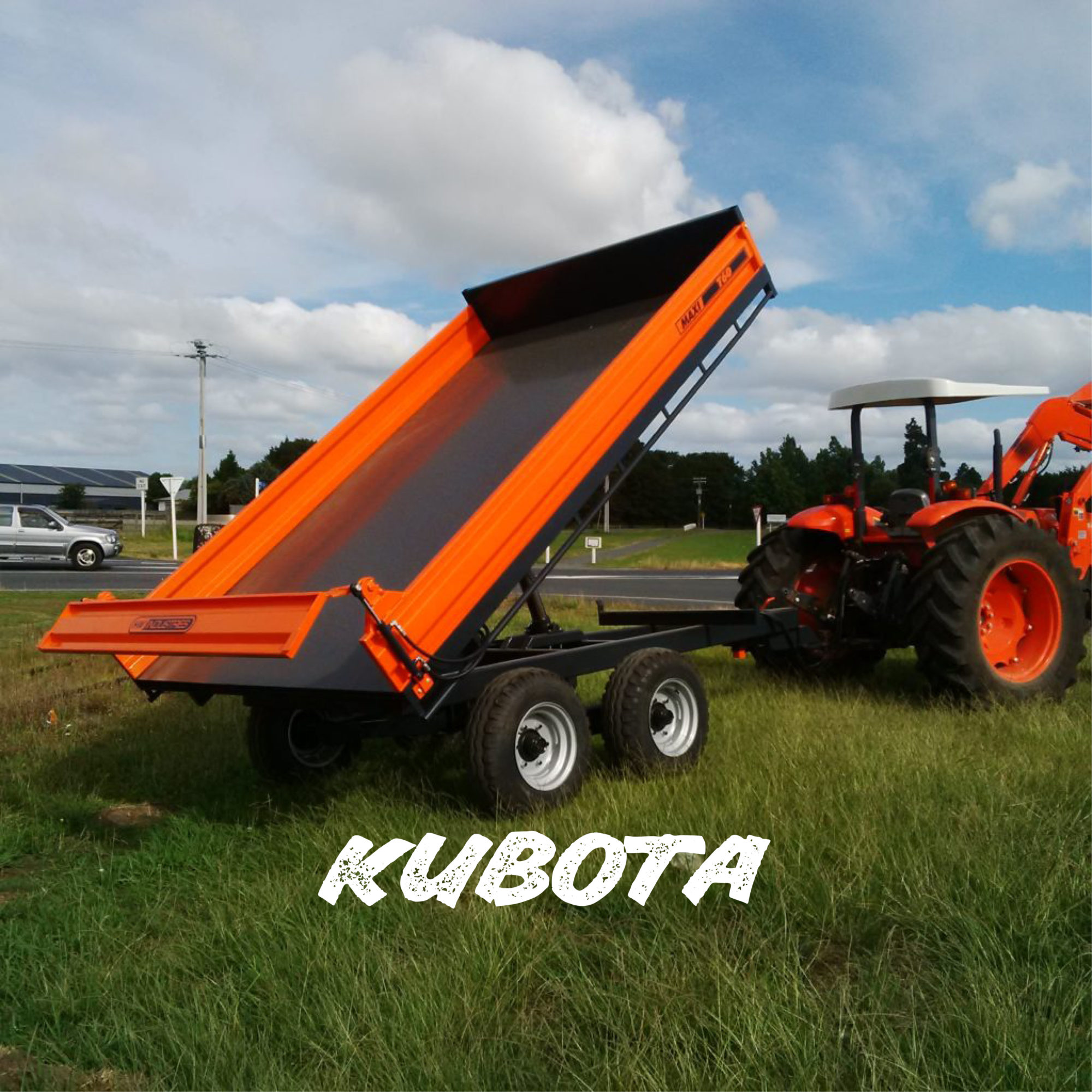

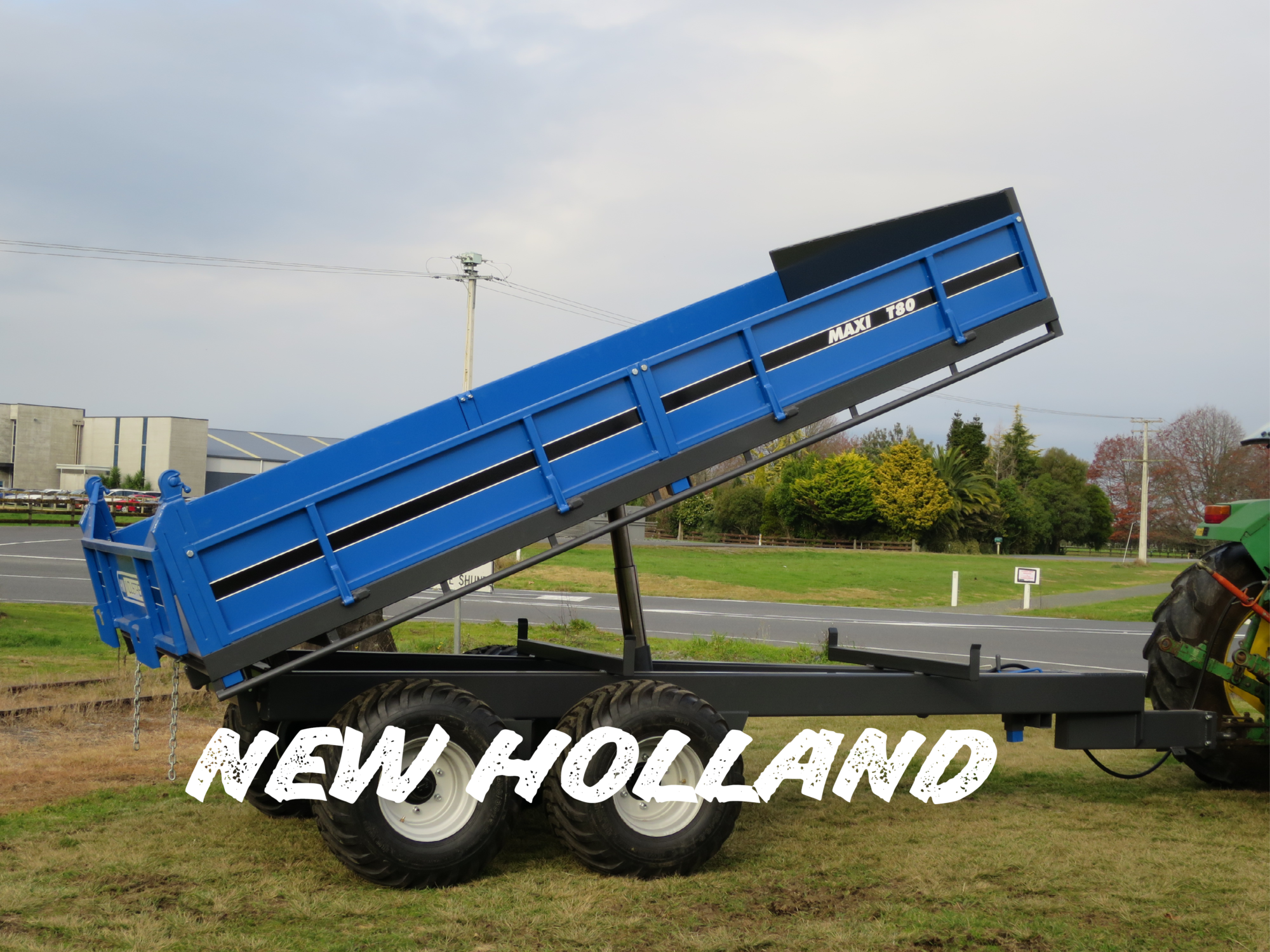

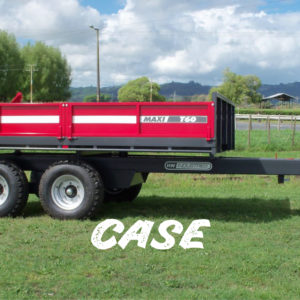

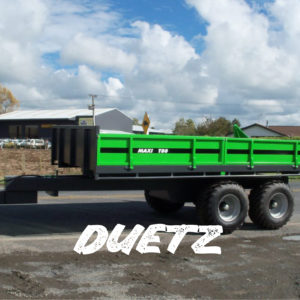

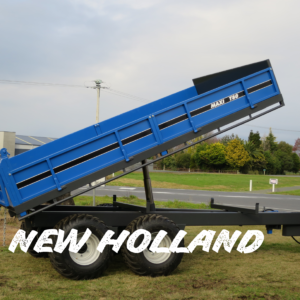

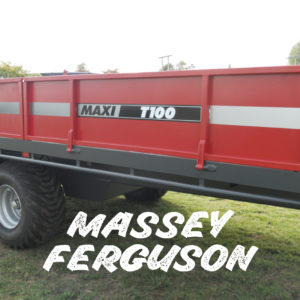

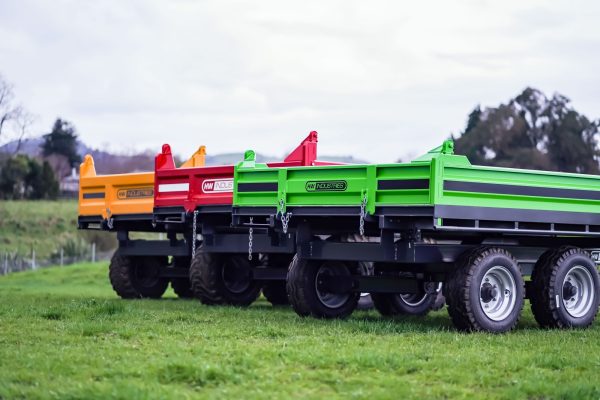

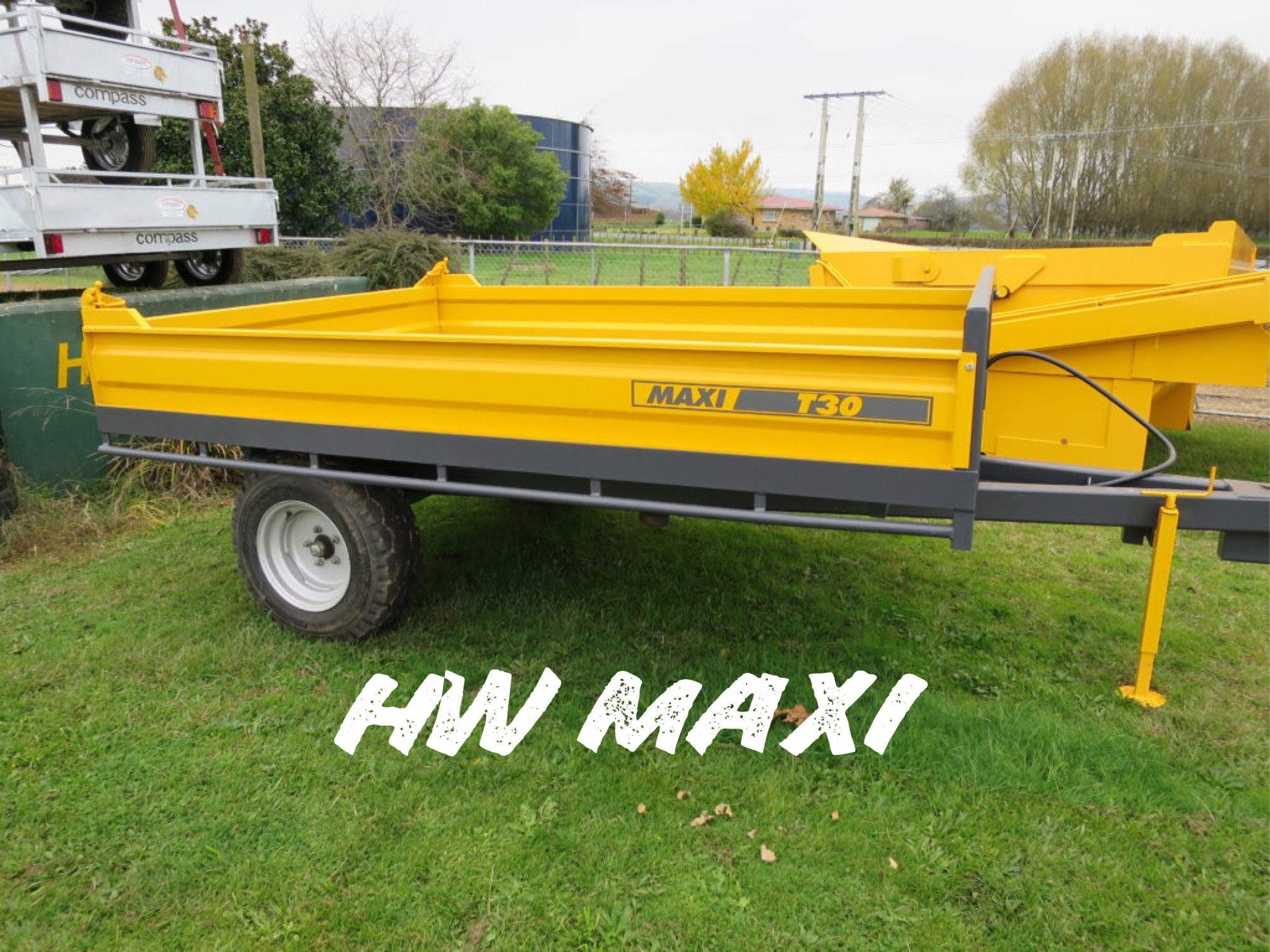

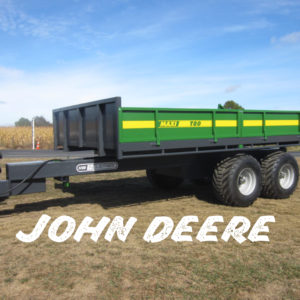

Customise your colour.

Match your trailer to your tractor! Take advantage of our personalized customization options; we offer the option to personalize your tip trailer in any colour you want. Chat with our team to learn more about how you can personalize your equipment.

Optional Extras.

We can customise your trailer to suit your needs. View our optional extras.

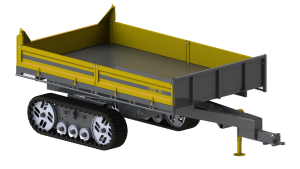

Trailer with Tracks

Equip your HW Maxi Tip Trailer with tracks to conquer the toughest terrains.

This added feature prevents you from getting bogged down in mud,

ensuring reliable performance even in the most challenging conditions.

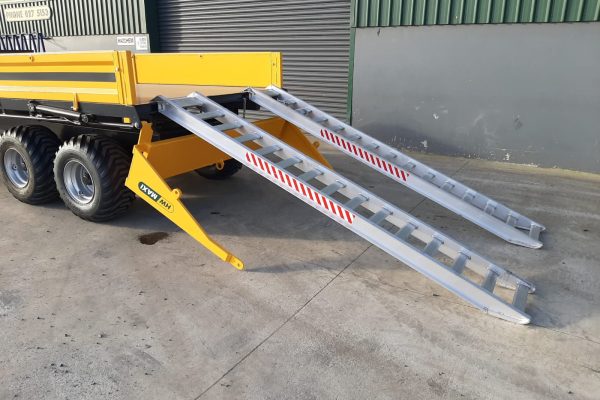

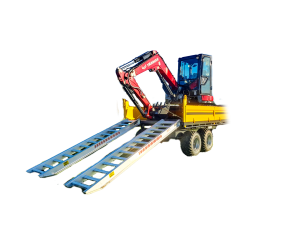

Digger Track Extension

Your trailer can be fitted with extending wings to fit your digger tracks to your trailer.

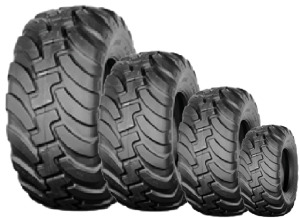

Tyre Size

Different tyre options available – POA.

Hydraulic Jack

You can have a hydraulic jack fitted to your trailer to make

raising and lowering much easier.

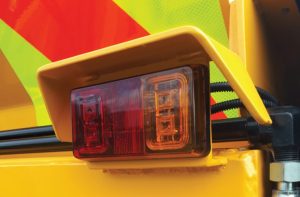

Tail Lights

Make yourself visible at night when working those long hours.

Hydraulic Tailgate Door for Easy Load Release by HW Industries in NZ

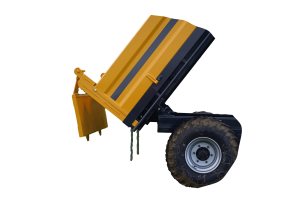

Hydraulic Tailgate Door Release

Hydraulic tailgate trip means you have full control over the load release.

Brakes

Having brakes on your trailer means you can manage your load

when working on steeper hills or when you need to slow down in a hurry.

Single Axle

The 6 Tonne T60 trailer can have single axle to reduce costs.

Tyre Tread Options Suitable for any Conditions By Hw Industries in NZ

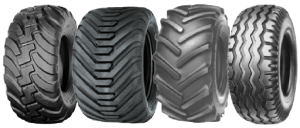

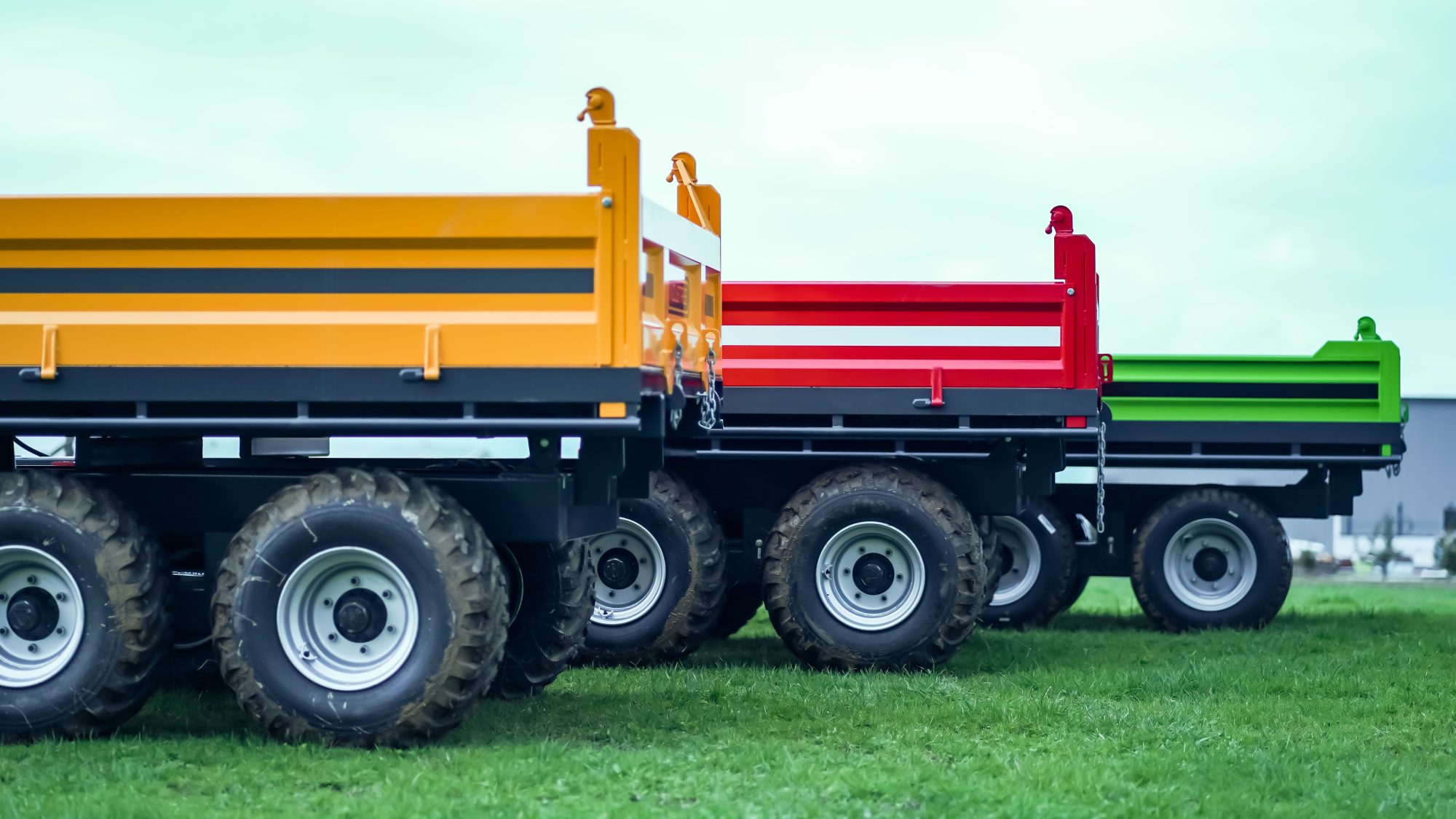

Tyre Profile

Modify your trailer tyres to suit your conditions with our selection

of tyre tread options.

Frequently Asked Questions.

What are the key features of HW Maxi Tip Trailers?

Features include radial-tuned rocker axles, adjustable tow eyes, auto tailgate release, and heavy-duty construction.

What are the available model sizes?

Models range from T50 to T180, catering to different load capacities.

Can HW Maxi Tip Trailers be customized to meet my specific needs?

Yes, options include welded tub decks, hydraulic jacks, and color matching. Contact us to find out more about how we can tailor our equipment to suit your project needs, contact us.

What is the tipping angle?

HW Maxi tip trailers offer a steep 55-degree tipping angle.

How can I learn more or purchase an HW Maxi Tip Trailer?

To learn more or discuss your specific needs, you can contact us online or call 0800 72 66 77. Our experienced team is ready to assist you with all your questions and requirements, contact us.

What maintenance is required for HW Maxi Tip Trailers?

Regular checks on tow eyes, axles, and jacks are recommended.
